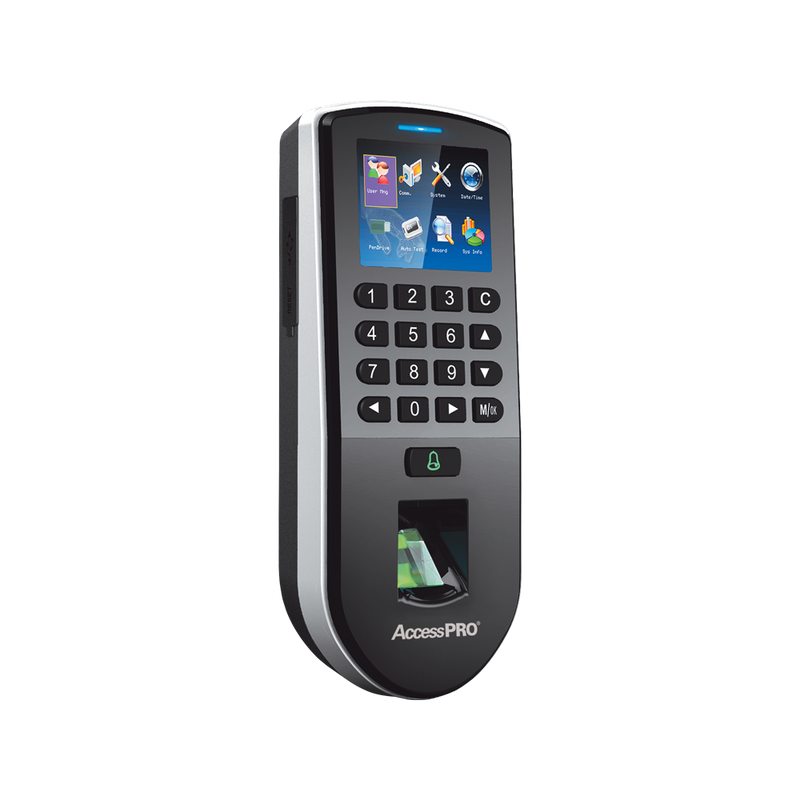

Biometric Reader / 3,000 Fingerprints / 5,000 Proximity cards / ADMS Compatible / TCP-IP / F12 as a Slave Reader

The ADMS function provides an Automatic Synchronization between the device and the software even in remote networks (Internet), the devices connect to the server and synchronize the data automatically; this type of communication only requires the server has a Public IP; each device needs an Internet connection and automatically browse for the server address and start synchronizing its data.

Features:
- Access Control.
- Time and Attendance.

Capacity:
- Fingerprints 3,000
- Cards 5,000
- Events 30,000

Communication:
- TCP/IP, RS485 & RS232.
- Management by USB Memory.
- Input & Output Wiegand 26 bits.
- Web Server Interface.

Hardware
- Anti-scratch Optical Fingerprint Sensor.
- Proximity Reader and Keypad.
- 3'' TFT Multimedia Screen.
- Voice Command Speaker.

Special Features:
-Access Control by Schedule.
- Verification Methods may be combined:
   • Fingerprint + Card
   • Fingerprint + Password
   • Card+ Password
   • Fingerprint + Card+ Password

Connections:
- Relay Output NC/NO/COM (12V,3A).
- Exit Button / Doorbell / Door Sensor.
- Alarm Output.

Power Supply:
- 12Vdc / 250mA om Standby & 300mA in Operation.
- Transformer Included.

Compatibility:
- F12 Reader as Slave Reader (For Output/Input).
- USB ZK4000 Reader for Fingerprint Registry.

Additional Information:
- Operating Temperature: 0 - 45°C.
- Dimensions: 180 x 175 x 44 mm.
- Language: English and Spanish.
- 1 Year of Warranty.

Compatible Cards:
- AC5, AC7, ATR11, ATR14 & ATR261B0.

Compatible Softwares:
ZKAccess 3.5 (free)
The software can manage Access control and Time & Attendance simultaneously and get a basic report for Check-In and Check-Out (For Time & Attendance Terminals up to 1000 employees).

ZKTimeNET 3.0 (Requires License)
- Real-Time monitoring for the employees (Check-In, Check-Out, or Not registered yet).
- More than 15 different reports (Transactions, Attendance, Late arrival, Early out, Absence, etc.).
- Management for different Shifts, Breaks, etc.
Licencias disponibles
- ZKTN3S (500 employees and 50 Terminals)
- ZKTN3P (1000 employees and 50 Terminals)
- ZKTN3A (2000 employees and 50 Terminals)

ZKTimeWEB 2.0 (By license)
ZKTime Web 2.0 is a cutting-edge Web-based Time Attendance software that provides stable communication for devices through GPRS/WAN. Users can access the software via their Web Browser to remotely manage hundreds of T&A terminals under complex network conditions (WAN). A newly launched Automatic Synchronization function will automatically synchronize data between devices and sever among the same 'Area.' Under its new user-friendly UI, managing Timetable, Shift, Schedule, and generating Attendance Reports are no longer challenges.
- Client Server Application.
- Easy management of interregional assistance.
- Requires ZKTWFWUP update, one per device.
(3 years licenses)
ZKTWEB10 License for 10 devices
ZKTWEB20 License for 20 devices
ZKTWEB50 License for 50 devices
ZKTWEB100 License for 100 devices

(10 years licenses)
ZKTWPRO100 License for 100 devices
ZKTWPRO200 License for 200 devices
ZKTWUL Unlimited License.
