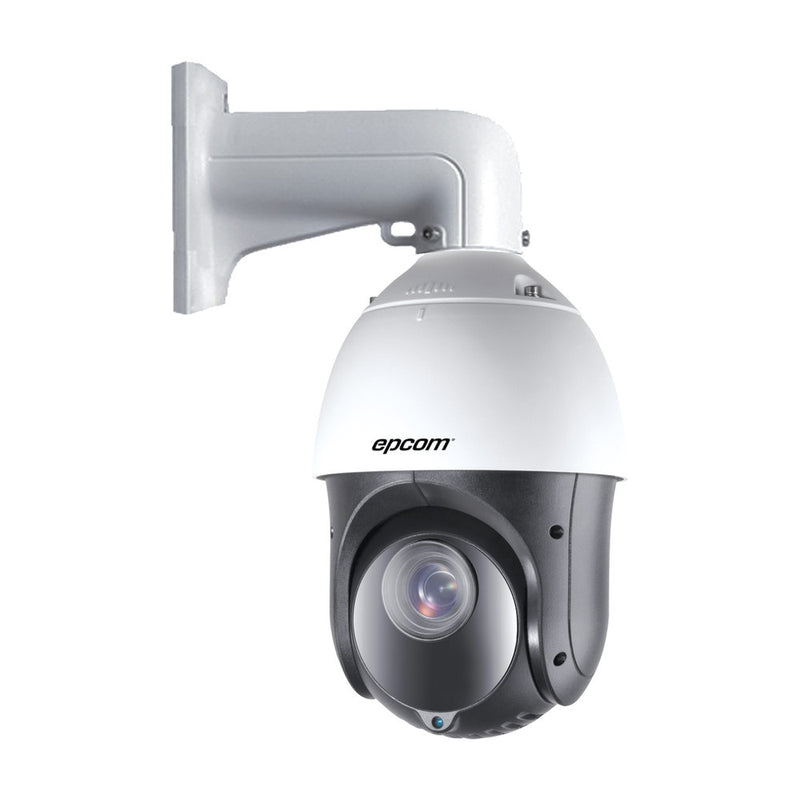

EPCOM XPTIE152X | IP PTZ Dome Camera 2MP | 15X Optical Zoom | 329ft IR EXIR | 120dB WDR | PoE+ | IP66 | H.265+ | ONVIF
Key Technical Specifications & Features
- Brand / Vendor: EPCOM
- Hardware Model / MPN: XPTIE152X
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
$318.58
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units
$318.58
Standard
5 - 9 units
$302.65
Save 5%
10+ units
$286.72
Save 10%
Guaranteed Safe & Secure Checkout
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$318.58
Standard Catalog
5 – 9 Units
$299.47
Save ~6%
10+ Units
$280.35
Save ~12%
Need an official corporate quote or net terms?
Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks
Shipped by: Nuo Networks
/143708-epcom-video-surveillance-solutions_(1).png)
Camera
- Image Sensor: 1/2.8' Progressive Scan CMOS
- Effective Pixels: 1920(H)x1080(V)
- Signal System: PAL/NTSC
- Minimum Illumination:
- Color: 0.005 Lux @(F1.6, AGC ON)
- B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
- White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
- AGC: Auto/Manual
- BLC: ON/OFF
- HLC: Support
- Smart defog: Support
- WDR: 120dB
- Shutter Time: 1/1 s to 1/30,000 s
- Day& Night: ICR
- Digital Zoom: 16×
- Privacy Masking: 24 privacy masks programmable
- Auto Focus: Auto / Semi-automatic / Manual
Lens
- Focal Length: 0.19 to 2.95' (5 to 75 mm), 15× optical
- Zoom Speed: Approx. 2.4 s (optical lens, wide-tele)
- Angle of View: Horizontal field of view: 53.8° to 4.0° (wide-tele)
- Vertical field of view: 31.9° to 2.3° (wide-tele)
- Diagonal field of view: 60.4° to 4.6°(wide-tele)
- Minimum Working Distance: 0.39 to 59.05' (10 mm to 1500 mm) (wide-tele)
- Aperture Range: F1.6 to F3.0
Pan & Tilt
- Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
- Power-off Memory: Support
- Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
- PTZ Position Display: ON/OFF
Infrared
- IR irradiation distance: 100m
- IR irradiation angle: Adjustable by zoom
Network
- Ethernet: 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional)
- Max.Image Resolution: 1920×1080
- Main Stream: 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
- Sub Stream: 60Hz: 30fps(704×480, 640x480,352×240)
- Third Stream: 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
- Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264/MJPEG
- ROI encoding: Support 4 areas with adjustable levels
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Three-Stream: Support
- Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
- P2P Function: Support
General
- Menu Language: English
- Power Supply: 12 VDC &POE (802.3at,class4)
- Power Consumption: Max.:18 W (IR Max.6 W)
- Working Temperature/Humidity:
- Working Temperature: -30°C to 65°C (-22°F to 149°F)
- Working Humidity: ≤ 90%
- Protection Level: IP66 standard (outdoor dome)
- Dimensions: Φ 165.9 mm × 290 mm (Φ 6.53' × 11.42')
- Weight (approx.): Approx. 2 kg (4.41 lb)
- Bracket included.
