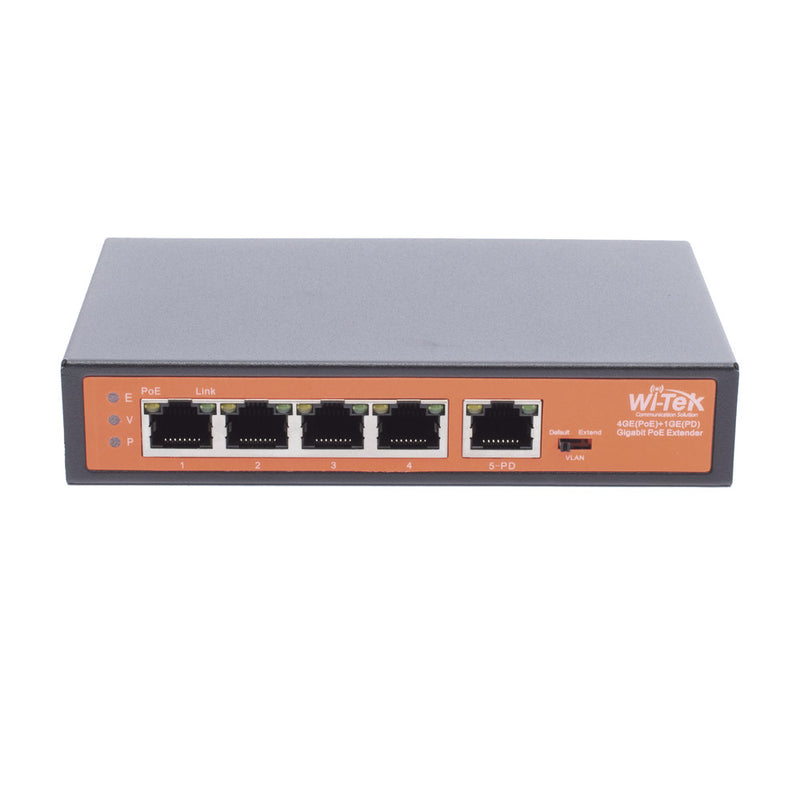

Gigabit PoE Extender with 1x PoE Input PoE 802.3af/at/bt, 4x PoE Output, 802.3af/at, 250m Long-Range, Plug & Play
- Brand / Vendor: WI-TEK
- Hardware Model / MPN: WIPE51G
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Gigabit PoE Extender with 4-Port PoE Output
The WI-PE51G is a non-managed Gigabit PoE extender designed to expand PoE network deployments beyond standard distance limitations. It accepts a single PoE input compliant with IEEE 802.3af/at/bt standards and distributes power and data across four PoE output ports conforming to 802.3af/at. The device supports extended-range operation up to 250 m (820.2 ft) with PoE, and up to 650 m (2132.5 ft) total reach when accounting for the input power source capacity. With plug-and-play installation and port isolation, it enables simplified deployment of multiple powered devices in surveillance, access control, and wireless access point applications without requiring local power sources at the endpoint location.
Main Features
- 1x PoE input 802.3af/at/bt, up to 90W
- 4x PoE output 802.3af/at, up to 30W per port
- Extended PoE range up to 250 m (820.2 ft)
- Maximum extension up to 650 m (2132.5 ft) with adequate input power
- 5x Gigabit Ethernet ports (10/100/1000 Mbps)
- Port isolation between output ports
- Plug-and-play operation, no configuration required
- Operating temperature: -10 to 55 degrees C
Performance
| Network Interfaces | (5) Ports 10/100/1000 Mbps |
| PoE Input (RJ45) | (1) 802.3af/at/bt, 60W |
| PoE Output (RJ45) | (4) 802.3af/at, 30W per port |
| PoE Pin Assignment | In: 4,5(+) 7,8(-) or 1,2(+) 3,6(-) Out: 4,5(+) 7,8(-) or 1,2(+) 3,6(-) |
| Extended PoE Range | Up to 250 m (820.2 ft) |
| Maximum Extension | Up to 650 m (2132.5 ft) |
Physical & Electrical
| Dimensions | 148 x 82 x 28 mm |
| Operating Temperature | -10 to 55 degrees C |
| Certifications | CE, FCC, RoHS |
Package Contents
| PoE Extender |
| Installation Guide |
Typical applications: IP camera clusters, wireless access point distribution, access control endpoints, and remote PoE device deployments requiring extended cable runs beyond standard 100 m Ethernet limitations.
