Wall Mounting Electronics Water Detection Device (Needs the WSU sensor)
- Brand / Vendor: WINLAND ELECTRONICS
- Hardware Model / MPN: WB-200
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Alarms
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: WINLAND ELECTRONICS | Model / MPN: WB-200
Availability: Standard Supplier Lead Time

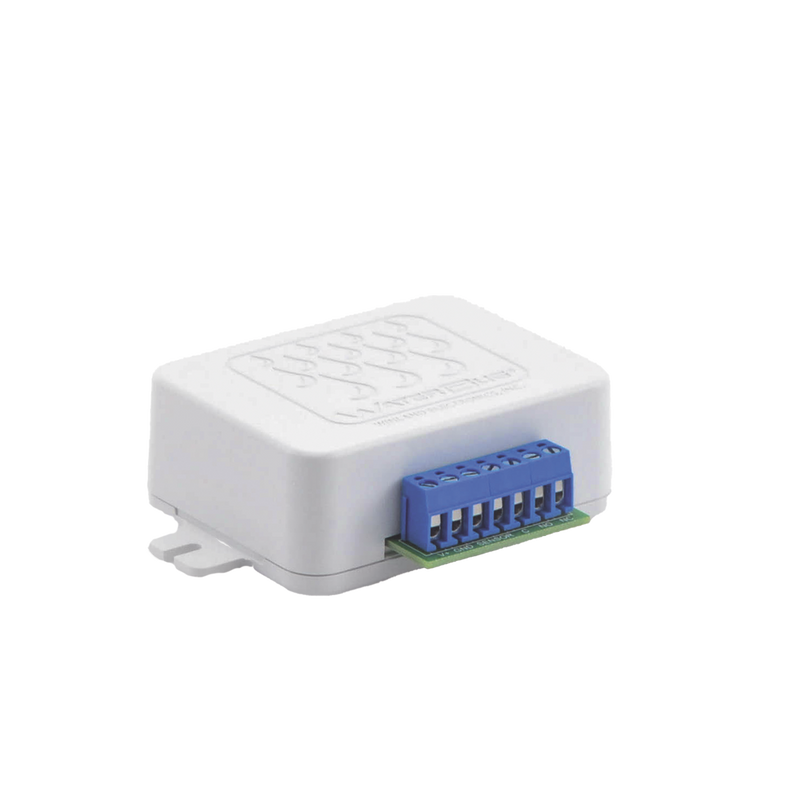

The WaterBug® 200 is a water detection device ideal for computer rooms, document storage areas, warehouses, sump pumps and basements, etc. WaterBug sensors activate the alarm when a conductive bridge is formed between 2 contacts. Protect your assets with the WB-200.
Use in conjunction with alarm panel, wireless transmitter, etc. Run as many as 6 sensors wired in parallel up to 100’ (30.48 m) away from the unit for wide area protection.
- Hardwire powered
- Includes one standard unsupervised surface sensor 1040 (W-S-U)
- Accepts standard unsupervised under carpet sensors 1041 (W-UC-U)
- One Form C relay output (N.O./N.C.)
Product Specifications.
- Power Requirements: 8 to 28 VDC @ 35mA / 8 to 28 VAC @ 100 mA
- Operating Temp: 32 to 130°F (0 to 54 °C)
- Output: Form C (N.O./N.C.) / 1 Amp @ 30 VDC, resistive / 1 Amp @ 24 VAC, resistive
- Audible Alarm: Install a BZ-1 for local buzzer
- Maximum Distance Between Console and Sensors: 1-2 probes; max 200’ (61 m) / 3-6 probes; max 100’ (30.5 m) per sensor
- Maximum Sensors per Console: 6
- Console Dimensions: 4.1 x 2.36 x 1.18” (10 x 6 x 3 cm) with flanges
Every package contains:
• 1 WB-200
• 1 Surface Probe - Unsupervised (W-S-U)
• 1 Installation/Operating Instructions Guide
