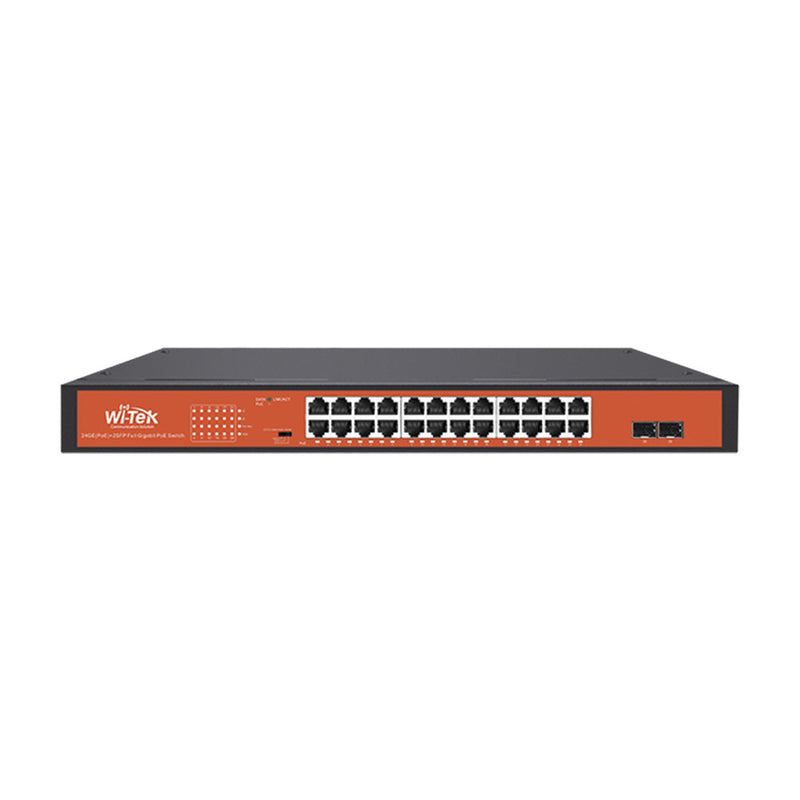

24-Port Gigabit PoE Switch with 2 SFP Slots, 250m Long-Distance CCTV Mode, and 250W Power Budget
- Brand / Vendor: WI-TEK
- Hardware Model / MPN: WI-PS326GFH
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
The WI-PS326GFH is a 24-port Gigabit PoE managed switch with 2 SFP fiber uplink slots. It integrates IEEE 802.3af/at PoE+ technology with a 250 W power budget, enabling simultaneous powering of multiple IP devices such as security cameras, access points, and VoIP phones. A dedicated CCTV long-distance mode extends transmission reach to 250 m (820.2 ft) at 10 Mbps, overcoming the standard 100 m Ethernet limitation. The PoE Watchdog system monitors port status and executes automatic reboots upon connection failures, reducing field maintenance interventions.
Main Features
- 24 Gigabit PoE RJ45 ports (10/100/1000 Mbps) with auto-negotiation
- 2 SFP slots at 1 Gbps for fiber optic connectivity
- IEEE 802.3af/at PoE+: up to 30 W per port, 250 W total budget
- CCTV mode: extended range up to 250 m (820.2 ft) at 10 Mbps
- PoE Watchdog: automatic port reboot upon detected failures
- 6 kV surge protection on ports and power input
- 4.1 Mbit buffer for efficient video traffic management
- 8K MAC address table with auto-learning and aging
Performance and Connectivity
IEEE Standards: 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at
PoE RJ45 Ports: 24 x 10/100/1000 Mbps
SFP Slots: 2 x 1000 Mbps
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
Buffer: 4.1 Mbit
MAC Table: 8K
Transmission Mode: Store-and-forward
CCTV Mode: 250 m (820.2 ft) at 10 Mbps (ports 1-8)
PoE Watchdog: Port monitoring and automatic reboot
Physical and Electrical Specifications
Power Supply: 100-240 V AC, 50/60 Hz
Power Consumption (no PoE load): 15 W
Total PoE Budget: 250 W
Power per Port: Up to 30 W (802.3at)
Surge Protection: 6 kV (ports and power)
Dimensions: 440 x 285 x 44.5 mm (17.3 x 11.2 x 1.75 in)
Weight: 3.5 kg (7.7 lb)
Mounting: 19' rack (brackets included)
Cooling: Internal fans
Operating Temperature: 0 to 40 C (32 to 104 F)
Operating Humidity: 10% to 90% RH (non-condensing)
Package Contents
WI-PS326GFH Switch: 1 unit
AC Power Cord: 1 unit
Rack Mounting Brackets: 1 pair
Mounting Screws: Set included
Quick Installation Guide: 1 unit
Typical Applications: Network infrastructure for IP surveillance systems with long-distance PoE cameras, enterprise WiFi deployments with PoE+ access points, and IP telephony in office and industrial environments.
