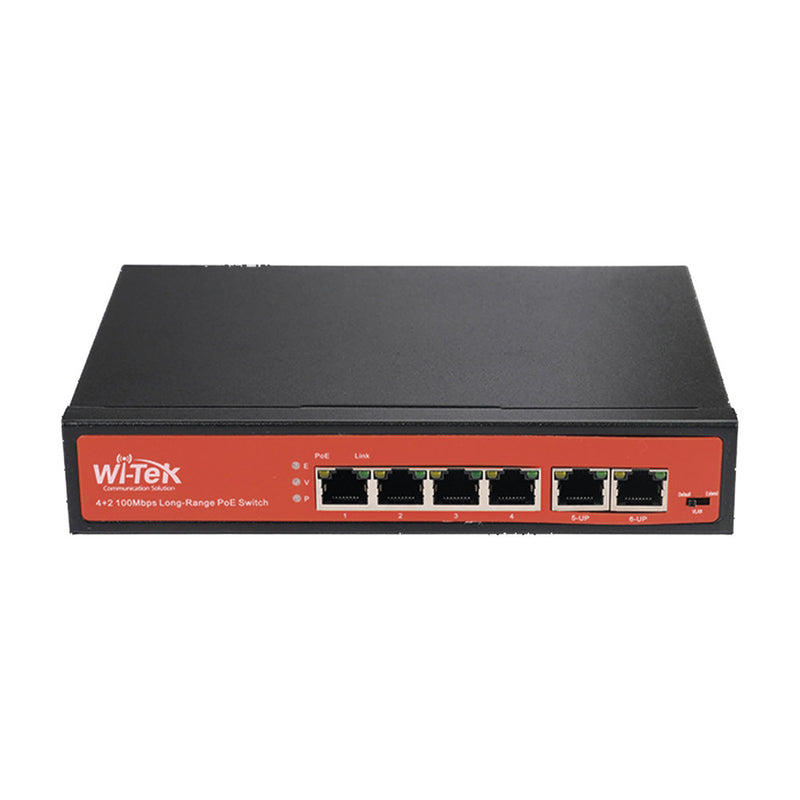

Switch with 4 PoE ports 10/100 up to 250m and 2 uplink ports 10/100, supports 1 port with Hi-PoE
- Brand / Vendor: WI-TEK
- Hardware Model / MPN: WI-PS205V2
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Unmanaged PoE Switch with Extended Range
The WI-PS205V2 is a desktop switch with 4 PoE 10/100 Mbps ports and 2 uplink 10/100 Mbps ports. It incorporates one 60 W Hi-PoE port for high-consumption devices such as PTZ cameras or access panels, while ports 2 through 4 deliver up to 30 W per IEEE 802.3af/at. The total PoE power budget is 65 W. The integrated DIP switch enables 250 m (820.2 ft) extension mode for installations with long cable runs, as well as port-based VLAN mode for traffic segmentation. The PoE watchdog monitors the status of powered devices and automatically reboots unresponsive units. Plug-and-play operation requires no configuration.
Main Features
- 4 PoE 10/100 Mbps ports + 2 uplink 10/100 Mbps ports
- Port 1 with Hi-PoE up to 60 W for high-consumption devices
- Ports 2-4 with IEEE 802.3af/at PoE up to 30 W per port
- Total PoE power budget of 65 W
- Extension mode to 250 m (820.2 ft) via DIP switch
- Port-based VLAN mode for traffic isolation between PoE ports
- PoE watchdog with automatic detection and reboot of unresponsive devices
- Plug-and-play operation with no configuration required
Network and PoE Performance
Switching capacity: 1.2 Gbps
Packet forwarding rate: 0.89 Mpps
MAC address table: 2K
PoE ports: 4 x 10/100 Mbps RJ45
Uplink ports: 2 x 10/100 Mbps RJ45
Port 1: Hi-PoE up to 60 W
Ports 2-4: IEEE 802.3af/at up to 30 W
Total PoE budget: 65 W
Extension mode: 250 m (820.2 ft) at 10 Mbps
VLAN mode: ports 1-4 isolation
Physical and Electrical
Power supply: 53 V DC / 1.22 A
Maximum power consumption: 65 W
Dimensions: 150 mm x 70 mm x 40 mm (5.9 x 2.8 x 1.6 in)
Weight: 0.35 kg (0.77 lb)
Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
Operating humidity: 10 % to 90 % non-condensing
Mounting: desktop or wall
Package Contents
WI-PS205V2 switch
Power adapter
Wall-mount kit
Quick start guide
Typical applications: IP surveillance installations with standard cameras and Hi-PoE devices (PTZ, access panels, license plate readers) at extended distances. VLAN segmentation for security traffic isolation.
