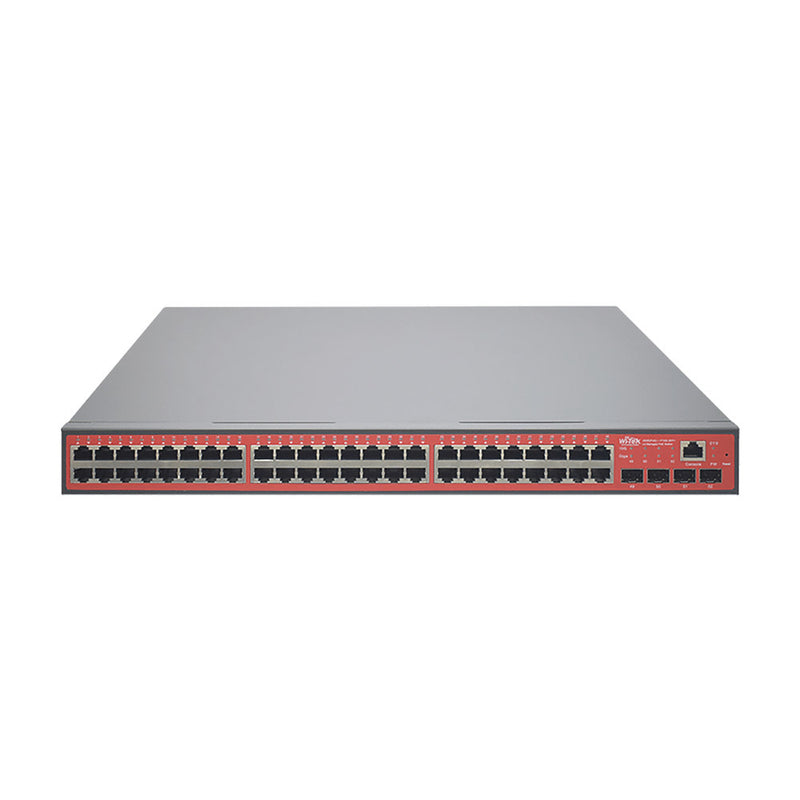

48-Port Layer 2+ Managed Gigabit PoE Switch with 4x10G SFP+ Uplink Slots, 565W Power Budget, Static Routing, and Advanced Management & Security Features
- Brand / Vendor: WI-TEK
- Hardware Model / MPN: WI-PMS552F
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
.jpeg)
.jpeg)
.jpeg)
Product Overview
The WI-PMS552F is a Layer 2+ managed PoE switch designed for high-density network deployments requiring both data connectivity and power delivery. It provides 48 Gigabit PoE+ ports compliant with IEEE 802.3af/at standards, supported by a 565W power budget for connected endpoints such as IP cameras, access points, and VoIP devices. Four 10G SFP+ uplink slots enable high-speed aggregation to core switches or servers, while static routing, QoS policies, and ACL-based security extend Layer 2+ functionality for segmented traffic management. Management is available through web interface, CLI via console/Telnet/SSH, SNMP, and RMON, allowing integration into existing network operations workflows.
Main Features
- 48 Gigabit PoE+ ports with 565W total power budget (802.3af/at)
- 4 x 10G SFP+ uplink slots for high-speed fiber connectivity
- 176 Gbps switching capacity and 184.64 Mpps forwarding rate
- Static routing, DHCP server, and link aggregation support
- QoS, ACL policies, and multi-layer security strategies
- Web, CLI (console/Telnet/SSH), SNMP, and RMON management
Performance & Interfaces
- 48 x 10/100/1000 Mbps PoE+ ports
- 4 x 10G SFP+ slots
- 1 x console port
- Switching capacity: 176 Gbps
- Packet forwarding rate: 184.64 Mpps
- MAC address table: 16K
- Jumbo frame: 9KB
PoE & Power
- PoE standard: IEEE 802.3af/at
- Total PoE power budget: 565W
- Per-port PoE power: up to 30W
- Power input: 100-240V AC, 50/60Hz
Management & Security
- Web-based GUI
- CLI via console, Telnet, SSH
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 groups)
- Static routing
- DHCP server
- Link aggregation (LACP/static)
- Port-based/MAC-based/802.1X VLAN
- ACL (L2/L3/L4)
- QoS (802.1p, DSCP)
- Port mirroring, storm control
- DoS attack prevention
Physical & Environmental
- Dimensions: 440 x 320 x 44 mm (17.3 x 12.6 x 1.7 in)
- Weight: 4.5 kg (9.9 lb)
- Cooling: 2 built-in fans
- Memory: DDR3 2GB
- Operating temperature: 0 to 45 C (32 to 113 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Operating humidity: 10% to 90% RH (non-condensing)
- Storage humidity: 5% to 90% RH (non-condensing)
Package Contents
- WI-PMS552F switch unit
- Power cord
- Console cable
- Rack-mount brackets and screws
- Rubber feet
- Quick installation guide
Typical applications: Enterprise LAN access layer, IP surveillance networks with high PoE density, Wi-Fi access point aggregation in hospitality and education environments, and ISP access network edge deployments.
