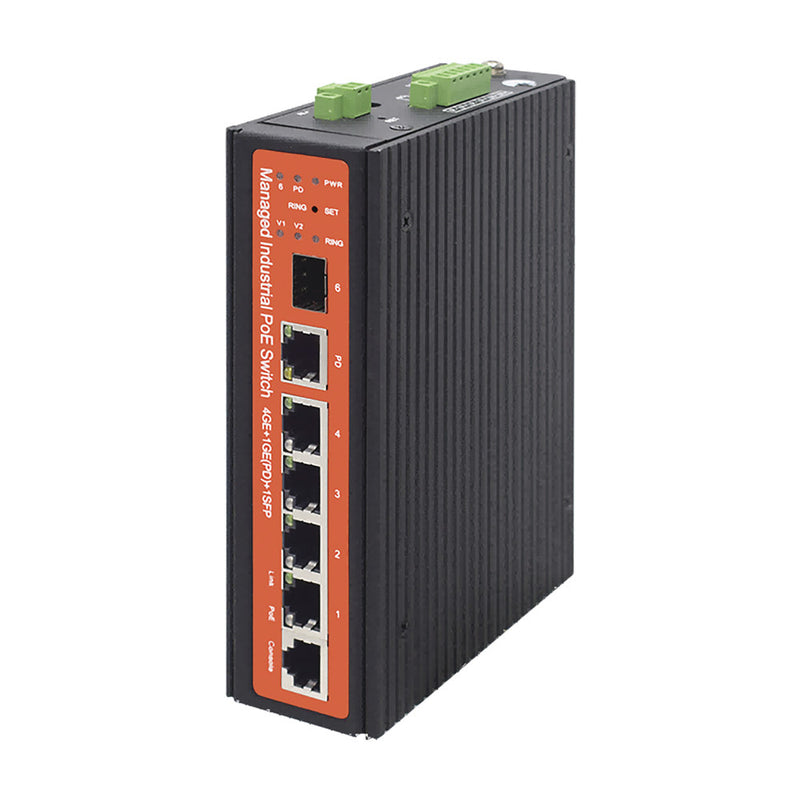

Rugged Power & Connectivity: Wi-Tek WI-PMS305GF-I Industrial PoE Switch with 24/48V Mixed 802.3af/at/bt PoE, SFP Uplink, Extreme Temperature Support & 6kV Surge Protection
- Brand / Vendor: WI-TEK
- Hardware Model / MPN: WI-PMS305GF-I
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Industrial L2 Managed 4-Port Gigabit PoE Switch with SFP Uplink
The WI-PMS305GF-I is an industrial L2 managed PoE switch engineered for demanding network deployments. It integrates four Base-T 10/100/1000 Mbps ports with mixed 24V passive / 48V 802.3af/at/bt PoE capability, one Base-X 1000 SFP slot for fiber uplink, and an additional PoE input port. The intelligent power architecture automatically identifies the voltage requirements of each connected device, enabling coexistence of 24V and 48V equipment without manual configuration. Its metal housing and fanless design ensure continuous operation across extreme temperatures, while 6kV surge protection safeguards equipment integrity in installations exposed to adverse electrical events.
Main Features
- L2 management with advanced network administration functions
- 4 PoE Base-T 10/100/1000 Mbps ports with mixed 24V/48V power
- Ports 1-2: 802.3af/at 24V passive / 48V up to 30W
- Ports 3-4: 802.3af/at/bt up to 60W
- Port 5: 802.3af/at/bt 60W PoE input
- 1 Base-X 1000 SFP slot for fiber optic uplink
- Automatic identification of 24V and 48V PoE power requirements
- Operating temperature of -40 to 80 C (-40 to 176 F)
- 6kV surge protection
- Fanless industrial design for silent operation
Connectivity and PoE
4 Base-T 10/100/1000 Mbps ports
1 Base-X 1000 SFP slot
1 PoE input Base-T 10/100/1000 port
Ports 1-2: 802.3af/at 24V passive / 48V 30W
Ports 3-4: 802.3af/at/bt 60W
Port 5: Input 802.3af/at/bt 60W
Automatic PoE voltage identification
Performance and Environmental
Managed L2 switch
Operating temperature: -40 to 80 C (-40 to 176 F)
Surge protection: 6kV
Fanless design
Industrial metal housing
Typical applications: Ideal for outdoor IP video surveillance deployments, industrial networks, transportation systems, and any infrastructure requiring flexible PoE power with 24V and 48V equipment coexisting on the same network, along with fiber connectivity for long-range extensions.
