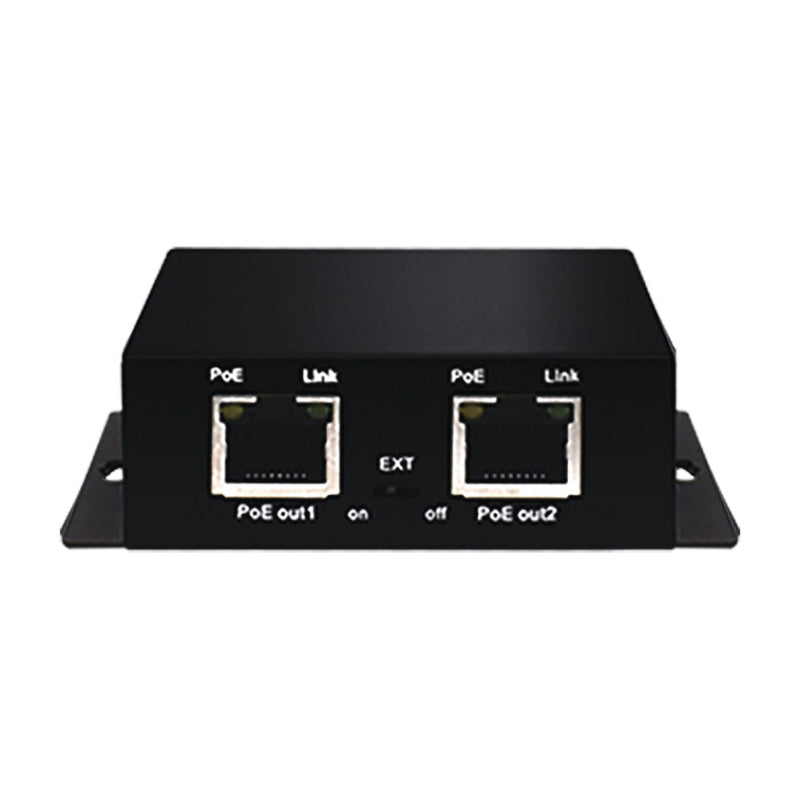

PoE Extender with 802.3af/at Support, 30W, Up to 250m. PoE Output Ports: 2x100Mbps; PoE Input Port: 1x100Mbps
- Brand / Vendor: WI-TEK
- Hardware Model / MPN: WI-PE31E
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
PoE Extender / 2x FE PoE Out / 1x FE PoE In / Up to 250 m (820.2 ft)
The WI-PE31E is a PoE extender designed to extend both power and data transmission beyond standard Ethernet distance limitations. It features one 100 Mbps PoE input port and two 100 Mbps PoE output ports, supporting IEEE 802.3af/at standards with up to 30W per port. The device enables PoE extension up to 250 m (820.2 ft) when the DIP switch 'Extend' mode is activated, making it suitable for installations where powered devices such as IP cameras or access points are located at distances exceeding typical 100 m cabling runs. Its fanless design ensures silent operation and reduced maintenance requirements.
Main Features
- PoE extension up to 250 m (820.2 ft) with Extend mode
- 3 Fast Ethernet PoE ports: 1 input, 2 output at 100 Mbps
- IEEE 802.3af/at support with 30W per port
- 48-55V DC input for flexible power sourcing
- Fanless compact design: 87 x 87 x 25 mm (3.4 x 3.4 x 1.0 in)
- Store-and-Forward switching architecture
Performance
- Network standards: 10BASE-T, 100BASE-TX
- Switching capacity: 0.6 Gbps
- Packet forwarding rate: 0.4464 Mpps
- MAC address table: 1K entries
- Switching method: Store-and-Forward
- PoE extension range: up to 250 m (820.2 ft)
Physical & Electrical
- Dimensions: 87 x 87 x 25 mm (3.4 x 3.4 x 1.0 in)
- Weight: 0.1 kg (0.22 lb)
- Power input: 48-55V DC
- Power consumption: 2W (without PoE load)
- Fan quantity: Fanless
- LED indicators: PWR, Link
- DIP switch: Extend
- PoE input pins: 4/5(+) 7/8(-) or 1/2(+) 3/6(-)
- PoE output pins: 4/5(+) 7/8(-) or 1/2(+) 3/6(-)
Package Contents
- PoE Extender WI-PE31E
- Quick Installation Guide
Network Media
- 10BASE-T: UTP Cat 3, 4, 5 (max 100 m / 328.1 ft); EIA/TIA-568 100 Ohm STP (max 100 m / 328.1 ft)
- 100BASE-TX: UTP Cat 5, 5e (max 100 m / 328.1 ft); EIA/TIA-568 100 Ohm STP (max 100 m / 328.1 ft)
Typical applications: IP surveillance systems requiring extended cable runs, wireless access point deployment in large facilities, and remote PoE device installations beyond standard 100 m Ethernet distances.
