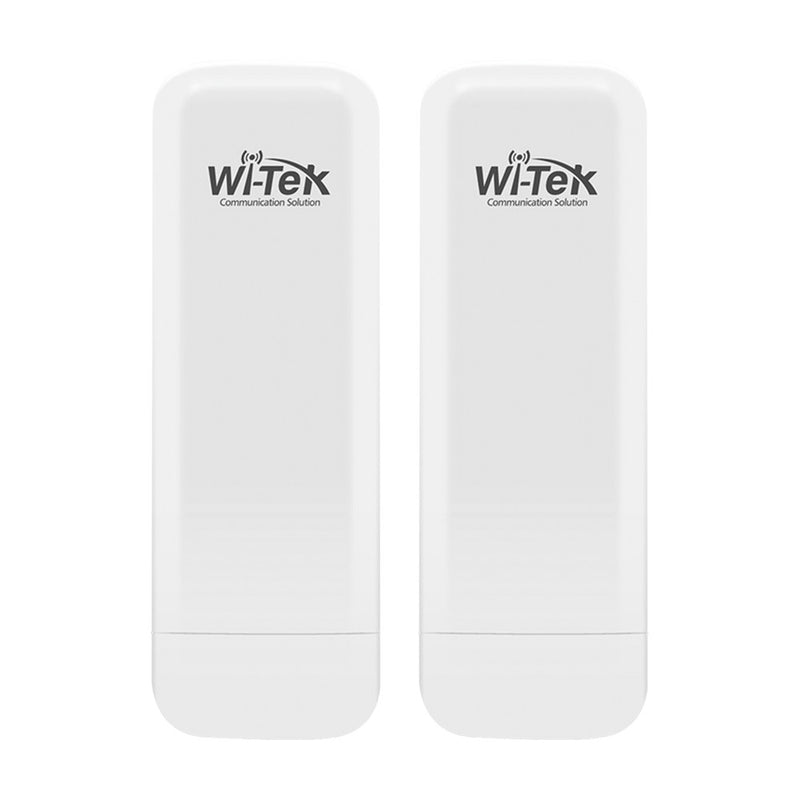

Wireless Transmitter Kit, up to 3.1 miles (5km) ideal for video surveillance, 5 GHz, up to 300Mbps, 13dBi, IP65, Plug and Play, 60° Beamwidth, Cloud management.
- Brand / Vendor: WI-TEK
- Hardware Model / MPN: WI-CPE513P-KIT-V3
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
WI-CPE513P-KIT-V3 Wireless Transmitter Kit
The WI-CPE513P-KIT-V3 is a two-unit outdoor CPE kit designed for point-to-point or point-to-multipoint links in video surveillance and data network applications. It operates in the 5 GHz band with 802.11a/n technology and wireless speeds up to 300 Mbps. Each unit integrates a 13 dBi dual-polarization directional MIMO antenna with a 60-degree beamwidth, enabling ranges up to 3.1 miles (5 km) under optimal line-of-sight conditions. The system includes centralized management via the Wi-Tek cloud platform and supports active 802.3af/at PoE with included 48V adapter.
Main Features
- Wireless range up to 3.1 miles (5 km) with integrated 13 dBi antenna
- Speeds up to 300 Mbps on 5 GHz (802.11a/n)
- Dual-polarization 2x2 MIMO antenna with 60-degree beamwidth
- Adjustable transmit power from 0 to 27 dBm
- Frequency range of 5150 to 5825 MHz
- Operating modes: Repeater, AP, CPE, WISP
- Centralized management via Wi-Tek cloud platform
- IP65 protection for outdoor installation
- Active 802.3af/at PoE with included 48V adapter
- PoE cable reach up to 328 ft (100 m)
Wireless Performance
Standard: IEEE 802.11a/n
Frequency: 5.150 - 5.825 GHz
Max speed: 300 Mbps
Max range: 3.1 miles (5 km)
TX power: 0 to 27 dBm (adjustable)
Antenna: 13 dBi, MIMO 2x2, dual polarization
Beamwidth: 60 degrees
Modes: Repeater, AP, CPE, WISP
Physical & Electrical
Protection: IP65
Power: Active 802.3af/at PoE
PoE adapter: 48V (included)
PoE cable reach: up to 328 ft (100 m)
Operating temperature: -22 to 158 F (-30 to 70 C)
Humidity: 0% to 90% RH (non-condensing)
Package Contents
2 x WI-CPE513P CPE unit
2 x 48V PoE adapter
2 x Pole/wall mounting kit
Typical applications: video surveillance links between buildings, LAN extension in industrial campuses, remote connectivity for retail points, and wireless backhaul for WISP networks in areas with difficult cable access.
*They work with active 802.3af/at PoE.
*The PoE adapter is included in the package.
