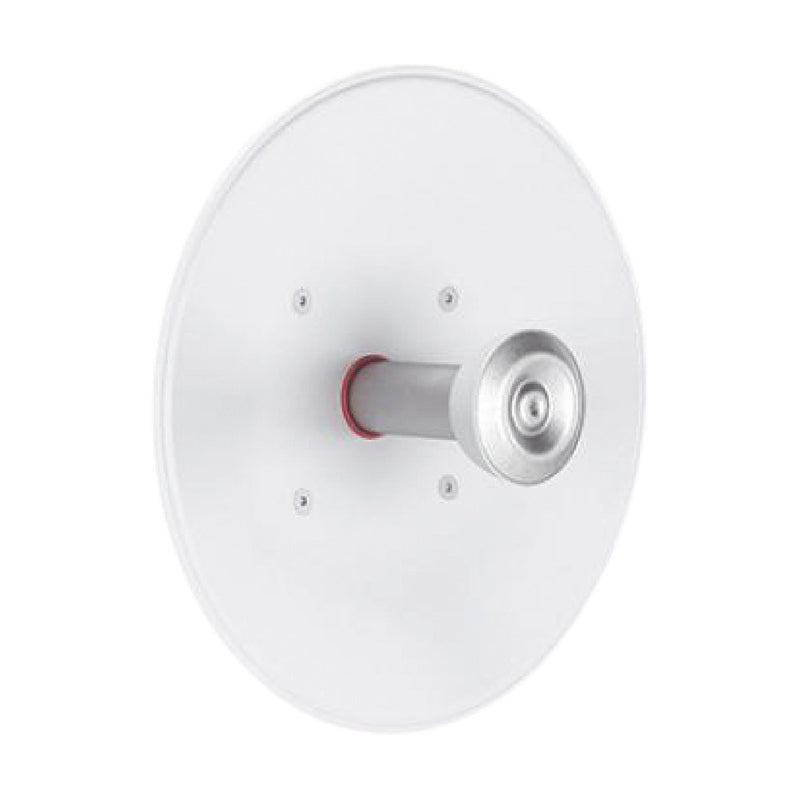

2-pack UltraDish 24.4 dBi antennas, Twistport connector and innovative mounting
- Brand / Vendor: RF ELEMENTS
- Hardware Model / MPN: UD-TP-24
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
High Gain Directional Antennas
UltraDishTM TP Antennas are parabolic dish antennas with a wide gain range and lossless TwistPortTM connector. The UltraDish TP Antennas have high directivity and suppressed side lobes for the ultimate performance.
Beam Performance
The radiation pattern of UltraDishTM TP Antennas with suppressed side lobes minimizes the collected and transmitted interference in high-noise areas. The flexible gain of UltraDishTM TP Antennas is achieved by adjusting the size of the main reflector size that focuses the signal fed via the TwistPortTM connector.
Wideband 5.1 - 6.4 GHz
Stable antenna gain is important for reliable link performance. The gain of all three UltraDishTM TP Antennas is stable in the whole useful bandwidth - from 5.1 up to 6.4 GHz, letting you leverage the whole spectrum between UNII-1 and UNII-5 bands with stable performance regardless of the channel used.
TwistPortTM Connector
TwistPortTM is our patent-pending quick-locking waveguide connector with practically zero loss. It connects our antennas to an RF radio and embodies the new standard for scalable, high-performance, and easy-to-use wireless equipment.
Easy Connection
TwistPortTM operation is extremely easy. The mounting and RF connection of the radio is combined into a single, elegant, and highly functional "twist and lock" design. A single-handed radio installation is now a real option!
Lossless
TwistPortTM connector is practically lossless. With no coaxial connectors or cables, there is no loss introduced during the delivery of the signal from the radio to an antenna. The ultra-low loss of waveguide makes TwistPortTM losses practically unmeasurable.
Cross-Platform Compatibility
UltraDishTM TP Antennas can be used with any radio with a TwistPortTM interface and a variety of third-party radios connected through a TwistPortTM Adaptor.
Innovative Mount
UltraDishTM TP Antennas feature an innovative mounting system design optimized for simplicity and durability. The installation and aiming adjustment is quick, easy, and can be done within minutes.
Step 1: Bracket Installation
The bracket has two settings depending on the pole thickness and can be easily mounted on both sides of the tower.
Step 2: Antenna Adjustment
The antenna easily slides in the bracket and adjustment of the elevation and azimuth is simple thanks to the laser engraved measures directly on the bracket. Single tool is enough for tightening of all bolts.
