U-Fiber Instant Optical Transceiver
U-Fiber Instant Optical Transceiver
SKU:UF-INSTANT
Brand: UBIQUITI NETWORKS | Model / MPN: UF-INSTANT
Availability: Immediate Dispatch from USA Warehouses

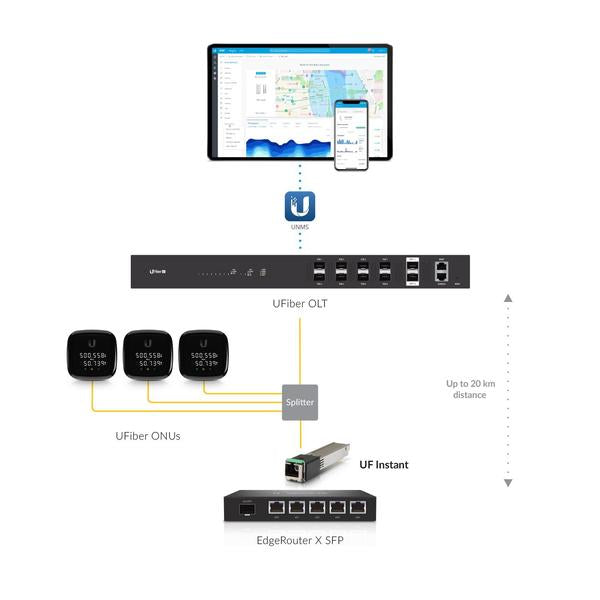

Topology Diagram
The diagram below illustrates the basic topology for a GPON network.
| Product Specification | |
|---|---|
| Dimensions | 69.46 x 13.70 x 11.30 mm (2.74 x 0.54 x 0.45") |
| Weight | 30 g (0.96 oz) |
| Networking Interfaces | (1) SC/APC, GPON WAN (1) SGMII Ethernet LAN |
| Networking Interface Speeds GPON WAN, ITU G.984 GbE LAN |
2.488 Gbps Downstream 1.244 Gbps Upstream 1 Gbps |
| Management Interface | Inâ€Band Ethernet PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: â€28 to â€8 dBm |
| Power Method | SFP |
| Power Supply | 3.3V |
| Max. Power Consumption | 2W |
| Supported Voltage Range | 3.3V |
| Processor Specs | MIPS 100 MHz |
| Memory Information | 32 MB DDR |
| Operating Temperature | â€10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
Installation Requirements
- UFiber OLT
- Ubiquiti product with SFP port
For more information, refer to: ubnt.link/Using-UF-Instant
No se pudo cargar la disponibilidad de retiro
Bajas existencias: quedan 2
Ver todos los detallesBrand: UBIQUITI NETWORKS | Model / MPN: UF-INSTANT
Availability: Immediate Dispatch from USA Warehouses
Topology Diagram
The diagram below illustrates the basic topology for a GPON network.
| Product Specification | |
|---|---|
| Dimensions | 69.46 x 13.70 x 11.30 mm (2.74 x 0.54 x 0.45") |
| Weight | 30 g (0.96 oz) |
| Networking Interfaces | (1) SC/APC, GPON WAN (1) SGMII Ethernet LAN |
| Networking Interface Speeds GPON WAN, ITU G.984 GbE LAN |
2.488 Gbps Downstream 1.244 Gbps Upstream 1 Gbps |
| Management Interface | Inâ€Band Ethernet PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm RX: â€28 to â€8 dBm |
| Power Method | SFP |
| Power Supply | 3.3V |
| Max. Power Consumption | 2W |
| Supported Voltage Range | 3.3V |
| Processor Specs | MIPS 100 MHz |
| Memory Information | 32 MB DDR |
| Operating Temperature | â€10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
Installation Requirements
- UFiber OLT
- Ubiquiti product with SFP port
For more information, refer to: ubnt.link/Using-UF-Instant
| Modelo | U-Fiber Instant Optical Transceiver |
|---|---|
| SKU / Referencia | UF-INSTANT |
| Marca / Fabricante | UBIQUITI NETWORKS |
| Categoría | Hardware |
| Disponibilidad | En Stock |
| Peso | 40 g |
💡 Para agregar especificaciones técnicas detalladas, crea un metafield de tipo HTML llamado b2b.specs_table desde tu panel de Shopify.
📄
Fichas Técnicas y Manuales
Agrega PDFs, manuales y hojas de datos técnicos creando el metafield b2b.downloads de tipo HTML en tu panel de Shopify.
💬 Solicitar ficha técnica por WhatsApp
U-Fiber Instant Optical Transceiver
$106.89
