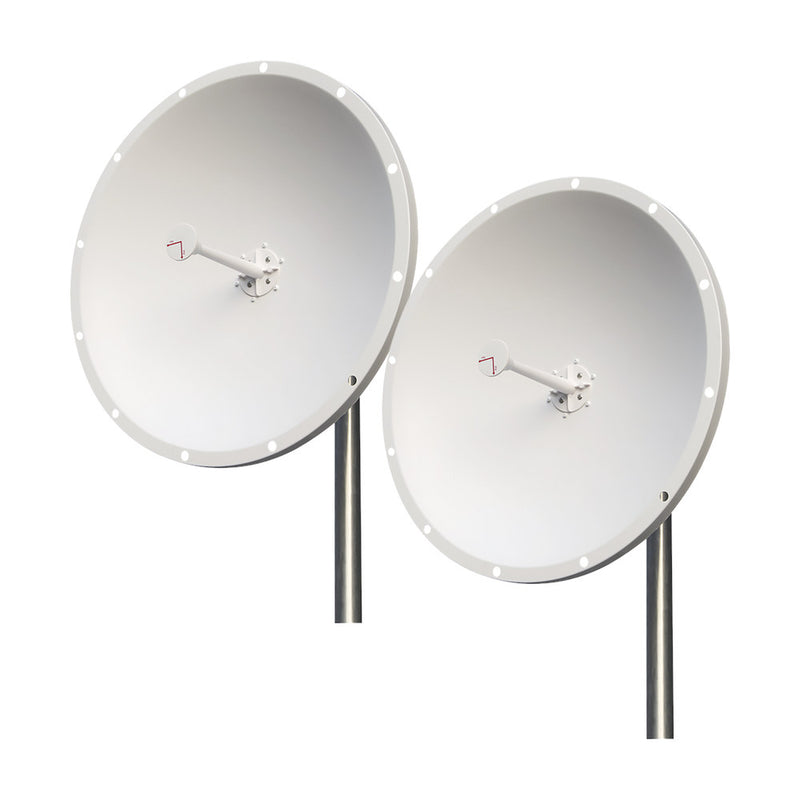

Kit of 2 Antennas Extended Frequency, 4.8 - 6.5 GHz, 28 dBi, N-Male Connectors, Ideal for WISP
- Brand / Vendor: TXPRO
- Hardware Model / MPN: TXP-D4865-28-N-KIT2
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
| TxPRO · Parabolic Antenna Kit TXPD486528NKIT2 Everything you need for a complete PtP link in one box — two ultra-light 4.8–6.5 GHz parabolic antennas with N-Male jumpers, ready for WISP backhaul, video, and long-range data transmission in low-noise environments. 2 ANTENNAS INCLUDED · 1 BOX · N-Male Jumpers |  |
| 2 × 28 dBi Max Gain per Dish | 9.32 mi Avg. Range (15 km) | 124 mph Wind Survival (200 km/h) | 2 × 5.5 lb Weight each (2.5 kg) |
| |  |
| What's in the Box
|
| Overview |
TxPRO parabolic antennas are engineered for low-noise environments — rural deployments, remote backhaul links, and open-spectrum WISP networks where clean RF is available and every dB counts.
This kit bundles two TXP-D4865-28-N dishes in a single box, covering 4.8–6.5 GHz across two sub-bands (26 dBi at 4.8–5.1 GHz, 28 dBi at 5.1–6.5 GHz). Their ultra-light construction simplifies tower installation, reduces structural load, and cuts deployment time — providing everything needed to complete both ends of a point-to-point link.
Integrated N-Male RF coaxial cables allow direct, tool-free connection to compatible PtP radios.
| Key Features |
Kit of 2 Antennas — 1 Box 4.8–6.5 GHz Dual-Band Dual Polarization V/H or ±45° 7° Beam Width (H & V) > 28 dB Front-to-Back Ratio > 20 dB Port Isolation N-Male Jumpers Included Mimosa B5c Compatible 124 mph Wind Rating (200 km/h)
| Technical Specifications |
| Gain by Frequency Band — per antenna | ||
| Sub-Band | Frequency | Gain |
| Low Band | 4.8–5.1 GHz | 26 ±1 dBi |
| High Band | 5.1–6.5 GHz | 28 ±1 dBi |
| Specifications — per antenna | |
| Frequency Range | 4.8–5.1 GHz / 5.1–6.5 GHz |
| Polarization | V / H or ±45° |
| Beamwidth Vertical | 7° |
| Beamwidth Horizontal | 7° |
| Front-to-Back Ratio | > 28 dB |
| Port Isolation | > 20 dB |
| VSWR | ≤ 1.5:1 (max 2.0) |
| Max Power per Port | 50 W |
| Impedance | 50 Ω |
| Avg. Link Distance | Up to 9.32 mi (15 km) |
| Dish Diameter | 23.62 in (Ø 0.6 m) |
| Weight per Antenna | 5.5 lb (2.5 kg) |
| Color | White |
| Pole Mount Diameter | 1.18–2.75 in (30–70 mm) |
| Connectors | 2× RF cable, N-Male |
| Operating Temperature | -67°F to 158°F (-55°C to 70°C) |
| Humidity | < 95% |
| Wind Survival | 124 mph (200 km/h) |
| Shipping Dims. H×W×D | 27.6 × 28.3 × 7.9 in (70×72×20 cm) |
| ✓ | 1-Year Warranty with Epcom Covered against defects in materials and workmanship under normal use conditions. |
