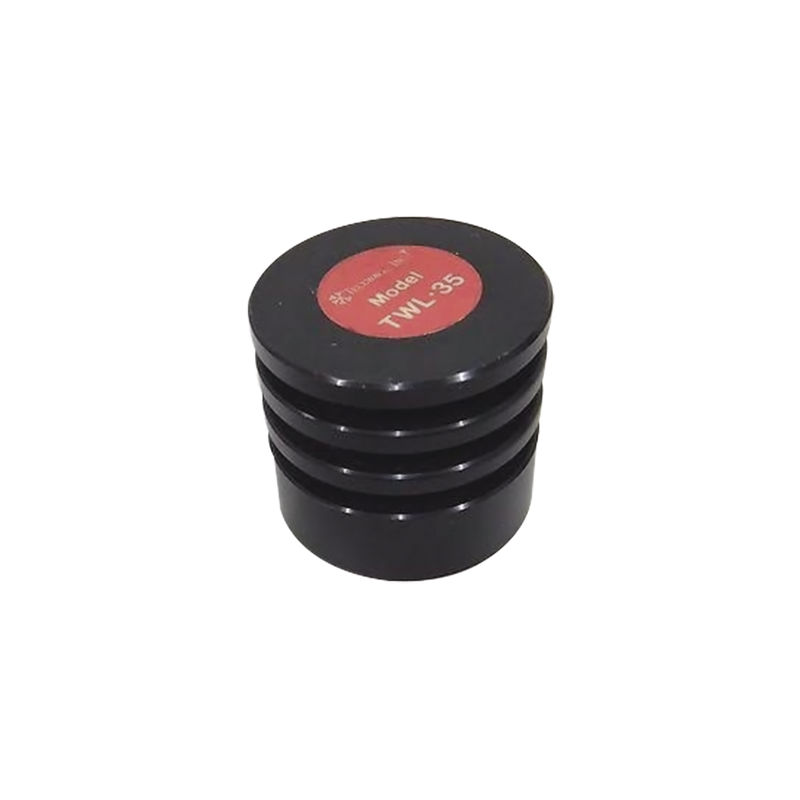

50 Ohm Coaxial Dry Load, 0-1000 MHz, 35 W with Type N Male Connector.
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: TWL-35
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
50 Ohm Coaxial Dry Load, 0-1000 MHz, 35 W with Type N Male Connector.
- The Telewave TWL-35 35-watt coaxial loads are machined to withstand any bench or field use.
- Their power rating provides substantial overload protection.
- Loads feature a recessed Type N Male or optional UHF Male connector for reduced size and ease of use, with sliver-plated center pin.
- Load features 50-ohm nominal impedance, broad 0-1000-MHz frequency range and extremely low 1.05:1 VSWR.
- Telewave compact coaxial loads offer extremely low VSWR.
- All loads are machined to withstand any bench or field use, and their power rating provides substantial overload protection.
- Unlike oilfilled loads, these dry coaxial loads can be operated in any position. Connectors have a silver-plated center conductor.
- TWL-60 feature recessed male connectors for reduced size and ease of use.
- Applications include hybrids, isolators, power monitors, wattmeters, and coaxial port terminations.
Features:
- Extremely low VSWR.
- CW power ratings to 35 W.
- Dry load.
- Broad frequency range.
- Rugged construction.
- N, BNC, or UHF Male connector (Specify connector type).
- Frequency range: 0-1000 MHz.
- Maximum avg. CW power: 35 W.
- Impedance: 50 Ohms (nominal).
- Temperature rating: 100% of rated power at 40º C, 50% of rated power at 95º C.
- 50% overload rating: 2 minutes.
- Connectors: N or UHF Male.
- Dimensions: 1.6 x 1.4 in.
- Weight: 0.25 lb.
