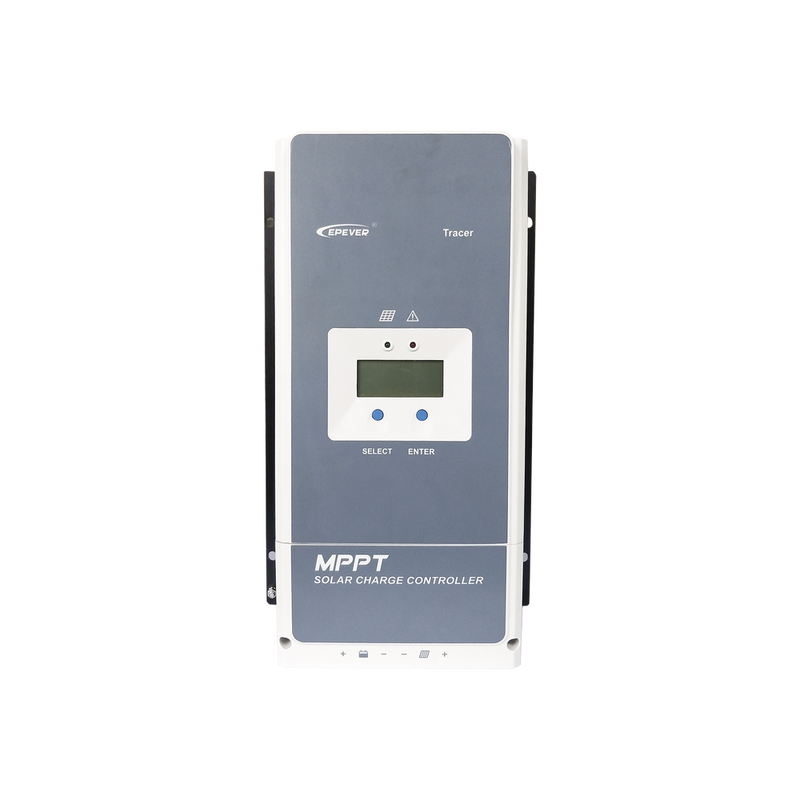

MPPT Solar Charge Controller 60A 12/24/36/48V, Max. PV open circuit voltage Voc 150Vcc
- Brand / Vendor: EPEVER
- Hardware Model / MPN: TRACER-6415-AN
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Energy / Tools
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Features & Benefits:
Certified Quality & Performance
- CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3).
- Advanced MPPT technology with an ultra-fast tracking speed of up to 99.5% efficiency.
- High energy conversion with a maximum DC/DC transfer efficiency of 98.7%.
Smart & Efficient MPPT Control
- Minimizes MPP loss rate and tracking time.
- Accurately tracks multiple peak MPP points.
- Wide MPP operating voltage range for better performance in varying conditions.
- Automatic power and current control to prevent overloading.
Versatile Battery Management
- Supports 4 charging modes: Sealed, Gel, Flooded, and User-defined.
- Battery temperature compensation for optimal charging.
- Real-time energy recording & statistics for efficient monitoring.
-
Automatic power reduction at high temperatures to prevent overheating.
Scalability & Smart Integration
- Supports up to 8 units in parallel for system expansion.
- Load relay control for diverse load operation modes.
- Dual relay contacts for first and second disconnection of load control.
- Automatic utility & generator control relays for hybrid power systems.
- Remote temperature & voltage sensors for accurate battery data collection.
Remote Monitoring & Connectivity
- Isolated RS-485 with 5VDC/200mA output (MODBUS protocol) for secure device communication.
- Monitor and configure settings via mobile apps or PC software.
Comprehensive Protection Features:
- PV Overcurrent/Power
- PV Short Circuit
- PV Reverse Polarity
- Night Reverse Charging
- Battery Over Voltage
- Battery Over Discharge
- Battery Overheating
- Controller Overheating
- TVS High Voltage Transients
Experience efficient, reliable, and intelligent solar energy management with our advanced MPPT charge controller.
