Grounding system and Transient Peak Surge.
- Brand / Vendor: TOTAL GROUND
- Hardware Model / MPN: KIT-MASTER-TG-SITE
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Power & Electrical
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: TOTAL GROUND | Model / MPN: KIT-MASTER-TG-SITE
Availability: Immediate Dispatch from USA Warehouses
Measuring unit: kit
Description: magnetoactive electrode
Maximum capacity: 45A
Weight: 19.4 Kg
Packing dimensions: 87 x 35.5 x 26.5 cm.
Electrode:
TOTAL GROUND grounding electrode model TG-45K. Made of highly conductive electrolytic copper, specially treated to retard the effects of corrosion. Filtering device includes low frequency CSF with coupling to 1/2'' mass. It contains coupling coil for residential or low electrical activity facilities.
Coupler:
TOTAL GROUND inmpedance coupler model TGC01 with 900 amperes capacity, in NEMA 4 enclosure of 20 x 30 x 12 cm. Its attachment to natural electrodes increases the installation area. It complies with NOM-001-SEDE 2005 ART 250-81. (This model is not sold separately).
Compound H2Ohm:
H2Ohm organic base compound is made with coagulant hygroscopic material moisture. LAPEM test certificate and laboratory certified accredited by EMA (Mexican Accreditation Entity), with values ​​in the standard CRETIB for no toxicity or environmental damage.
Recommended application:
Database sites.
Transformers.
Telecommunications racks.
Satellite systems.
Radio frequency systems.
Industrial control systems.

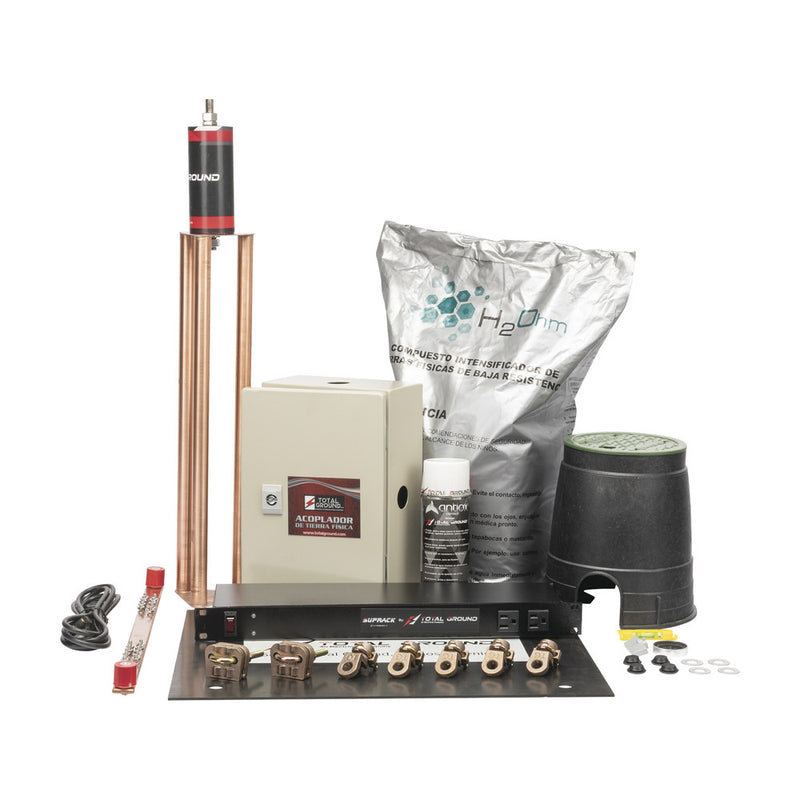

It includes:
1 electrode: 50 x 151.5 cm
1 filter CSF: 14 x 5 cm
1 TGC45 coupler: 30 x 20 x 12 cm
1 H2OHM: 11kg
