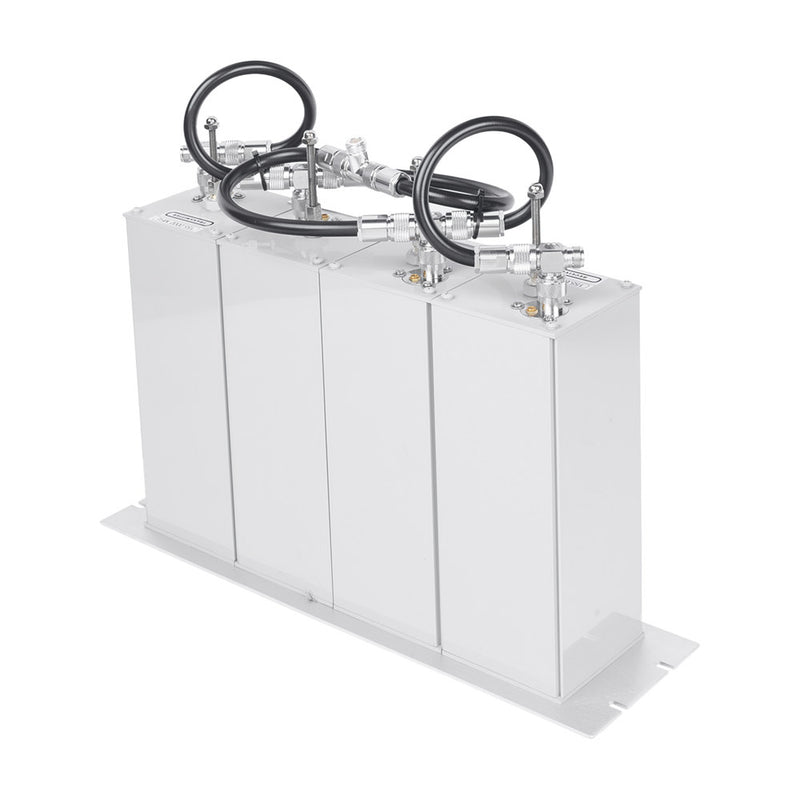

Compact Band pass / Band Reject Duplexer, 148-174 MHz, 600 kHz, 1.5 dB, 350 Watt, N Females.
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: TPRD-1544C
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: TELEWAVE, INC | Model / MPN: TPRD-1544C
Availability: Immediate Dispatch from USA Warehouses
VHF Compact Band pass / Band Reject Duplexer, 148-174 MHz.
- The TPRD-1544C 1544CM produce high performance in a compact design for the 148-174 MHz VHF band.
- These duplexers are less than 30% of the size of earlier models, and deliver greater isolation and power handling.
- Frequency Band: 148-174 MHz.
- Cavities: 4 (4 in by side).
- TX-RX Separation (Min.): 600 kHz.
- Insertion Loss: 1.5 dB.
- Isolation: 70 dB (@ 600 kHz).
- VSWR (max.): 1.5:1
- Input Power: 350 W.
- Dimensions (HWD): 5.25 x 19 x 15 in.
- Weight: 18.25 ib.
