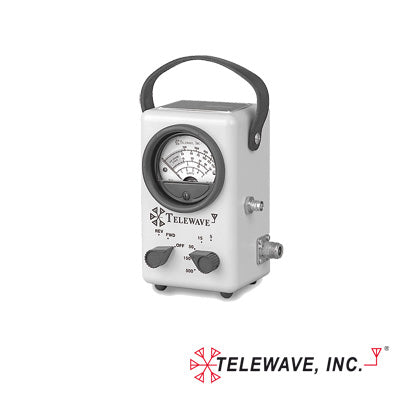

Compact Broadband Wattmeter with RF Sample Port and 40 dB attenuation.
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: 44AP
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: TELEWAVE, INC | Model / MPN: 44AP
Availability: Standard Supplier Lead Time
44AP Wattmeter is a compact and versatile instrument used for direct measurement of forward and reflected RF power in a coaxial transmission line under any load conditions.
Wide band capability and dynamic range allows operation without elements, inserts, or bandswitching.
The 20 microamp taut-band meter movement is shock mounted in a rugged, diecast housing, making this instrument ideal for mobile radio installation in aircraft or vehicles, as well as base stations.
Model 44AP includes an RF sampling port, with an output 40 dB below the total transmission line level, for frequency measurement, signal injection, or spectral analysis.
Frequency range: 20-1000 MHz.
Full scale power ranges: 5, 15, 50, 150, and 500 Watts.
Impedance: 50 ohms nominal.
VSWR (max) 1.1:1
Meter Accuracy: ± 6 % to full scale.
RF sampling port (44AP): -40 dB +/-2 dB below total power (forward + reverse).
Connectors (Input/Output) (Quick-Change standard) N Female standard.
Optional connectors: UHF, DIN, TNC or BNC.
Sample port (44AP): BNC Female.
Dimensions (HWD): 6.625 x 4 x 3.25 in.
Weight: 3 lbs.
