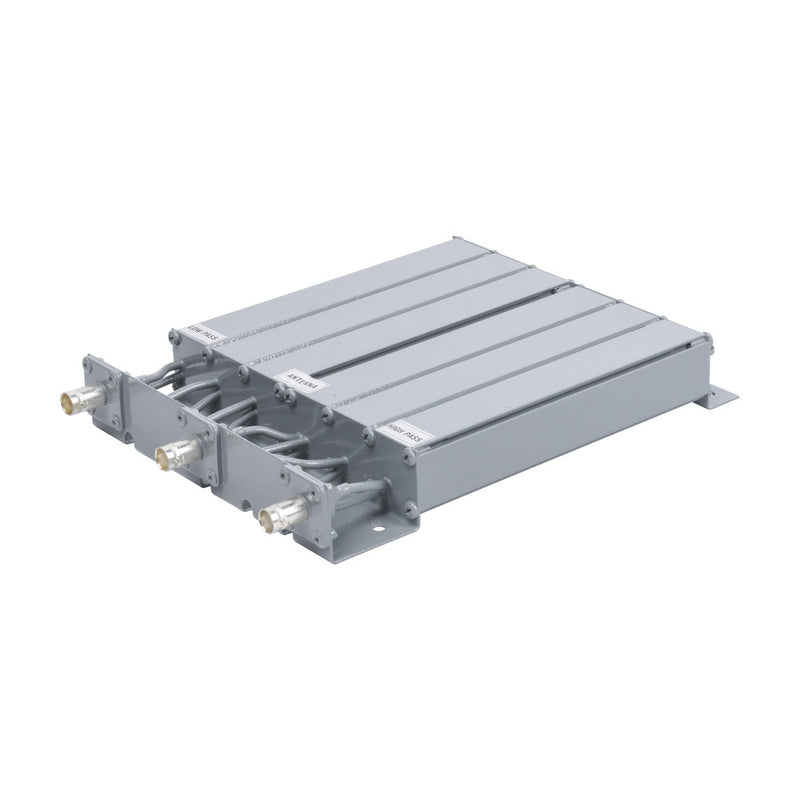

UHF SYSCOM Duplexer, 6 Cavities for 490-520 MHz, 50 Watt, 5 MHz Split, Reject Band, BNC Females.
Key Technical Specifications & Features
- Brand / Vendor: EPCOM INDUSTRIAL
- Hardware Model / MPN: SYS-4533-4P
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
$228.52
$285.65
Save: $57.13 (20% OFF)
5+ in stock • Ships from USA Warehouses
Volume Contractor Pricing:
1 - 4 units
$228.52
Standard
5 - 9 units
$217.09
Save 5%
10+ units
$205.67
Save 10%
Guaranteed Safe & Secure Checkout
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$228.52
Standard Catalog
5 – 9 Units
$214.81
Save ~6%
10+ Units
$201.10
Save ~12%
Need an official corporate quote or net terms?
Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks
Shipped by: Nuo Networks
Band Reject UHF Duplexer for 490-520 MHz.
- Frequency Band: 490-520 MHz
- Frequency Spacing: 5 to 8 MHz.
- Continuous Power Input (Maximum): 50 Watt.
- Impedance: 50 Ohm.
- Insertion loss (TX-Ant): 1.2 dB max.
- Insertion loss (Ant-RX): 1.2 dB max.
- TX-RX Isolation: 80 dB typical.
- VSWR, max. (50 Ohms): 1.3:1
- Connectors: BNC (N Optional).
- Temperature Range: 14 to 140 ºF (-10 to 60 ºC).
- Dimensions: 1.25 x 6.18 x 9.0' (31.8 x 157 x 228 mm).
- Weight: 3.5 lb (1.7 kg).
Product Description
- SYS-4533-XP series Mobile Duplexer uses six capacitively tuned TEM resonators in a compact
- extruded 6063-T5 aluminum templated housing, uses solid shield copper jacketed Teflon inter-cabling for low loss, and the entire unit is electrostatically painted for additional protection.
- Wide use in 'Full Duplex' systems with radio mobiles and repeaters (50 W. máx).
- Minimum Frequency shift by temperature changes.
- Using this device with less separation than 5 MHz between frequencies may cause operational problems for the repeater system.
- This device will not help you solve sensitivity problems in high RF locations.
- To interconnect the duplexer with the repeater, you must determine the lowest and highest frequencies; it does not matter which one is Tx or Rx.
Manufacturing 'Jumpers.'
- We manufacture any type of cable to any connector, any length, and any quantity.
- Specialized machines and experienced staff enable us to make their 'Jumpers' of coaxial cable professionally, with great performance, quality, and reliability at a reduced price.
- We only use cables and connectors of the highest quality.
Let us quote you. ¡Call us!
