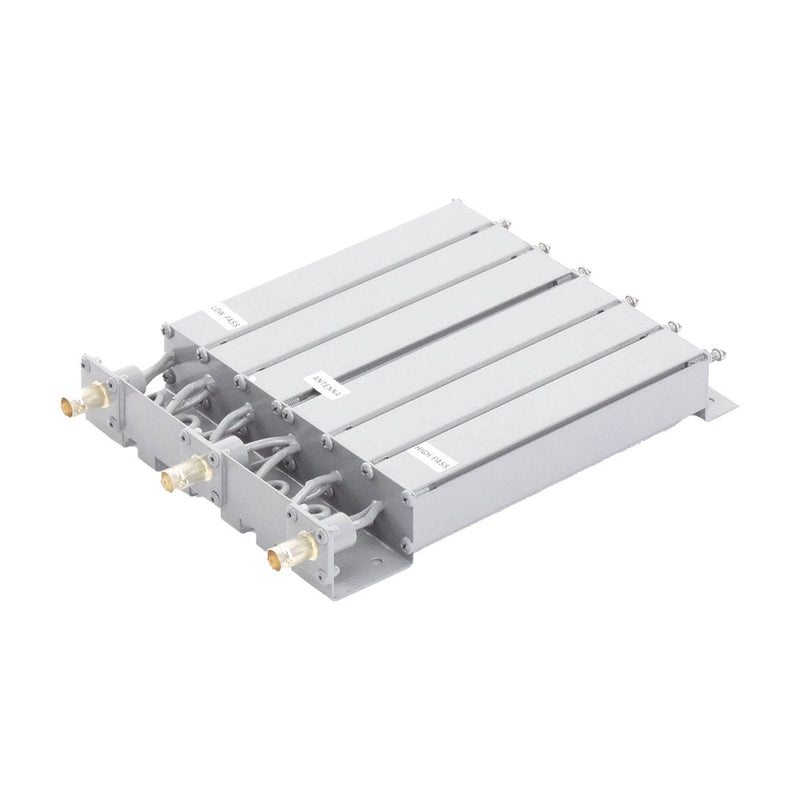

UHF SYSCOM Modified Duplexer, 6 Cavities for 470-490 MHz, 50 Watt, 5 MHz Split, Reject Band, BNC Females.
- Brand / Vendor: EPCOM INDUSTRIAL
- Hardware Model / MPN: SYS-4533-3PV2
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Band Reject UHF Duplexer for 470-490 MHz
UHF SYSCOM Modified Duplexer, 6 Cavities for 470-490 MHz, 50 Watt, 5 MHz Split, Reject Band, BNC Females.
- Frequency Band: 470-490 MHz
- Frequency Spacing: 5 to 8 MHz
- Continuous Power Input (Maximum): 50 Watt
- Impedance: 50 Ohm
- Insertion loss (TX-Ant): 1.2 dB max
- Insertion loss (Ant-RX): 1.2 dB max
- TX-RX Isolation: 80 dB typical.
- VSWR, max. (50 Ohms): 1.3:1
- Connectors: BNC (N Optional)
- Temperature Range: 14 to 140 ºF (-10 to 60 ºC)
- Dimensions: 1.25 x 6.18 x 9' (31.8 x 157 x 228 mm)
-
Weight: 3.5 lb (1.7 kg ).
- SYS-4533-xP series Mobile Duplexer uses six capacitively tuned TEM resonators in a compact
- extruded 6063-T5 aluminum templated housing, solid shield copper jacketed Teflon inter-cabling for low loss, and the entire unit is electrostatically painted for additional protection.
- Wide use in 'Full Duplex' systems with radio mobiles and repeaters (50 W. máx).
- Minimum Frequency shift by temperature changes.
- Using this device with less separation than 5 MHz between frequencies may cause operational problems for the repeater system.
- This device will not help you solve sensitivity problems in high RF locations.
- To interconnect the duplexer with the repeater, you must determine the lowest and highest frequencies, it does not matter which one is Tx or Rx.
