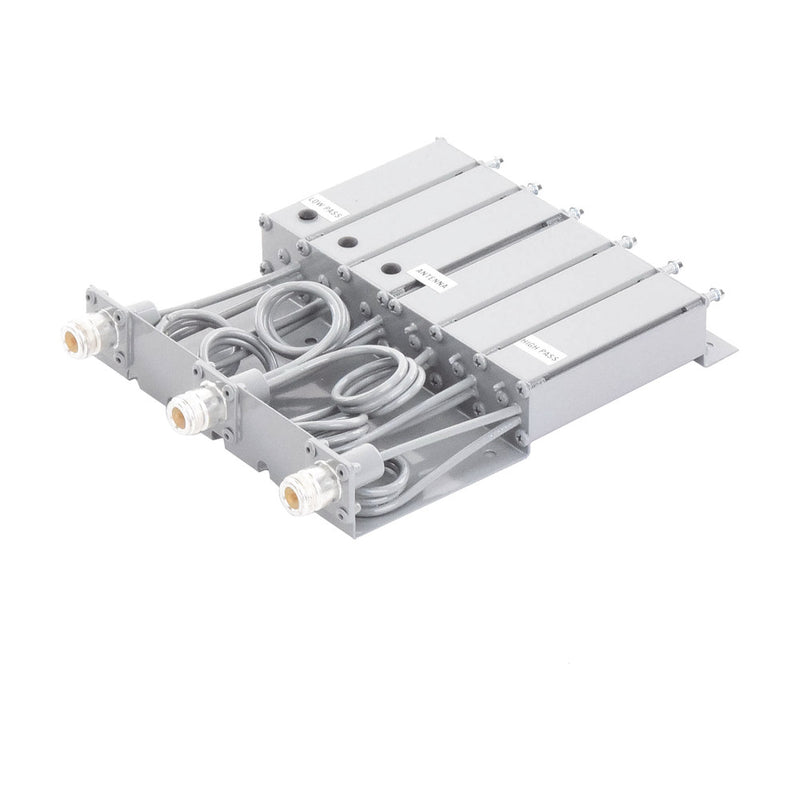

VHF SYSCOM Duplexer, 6 Cavities for 148-160 MHz, 50 Watt, 5 MHz Split, Reject Band, N Females.
- Brand / Vendor: EPCOM INDUSTRIAL
- Hardware Model / MPN: SYS-1533-2N
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
VHF Duplexer, 6 Cavity for 148-160 MHz, 50 Watt, N Female Connectors.​
General Features:
- Widely used in full-power mobile radios and repeaters (up to 50 W).
- Minimal frequency shift due to temperature changes.
- Silver-plated copper tube resonators (UHF) and tinned copper helical resonators (VHF).
- Teflon insulation for VHF and UHF.
- Interconnection with conformable cables reduces insertion loss.
- This device will not help resolve sensitivity issues in high RF incident areas.
- Shielded with extruded 6063-T5 tempered aluminum cavities.
Technical Specifications:
- TX-RX Frequency Separation: 5 to 8 MHz.
- Maximum Insertion Loss: 1.2 dB.
- Isolation between Tx and Rx: 80 dB.
- Maximum Continuous Power: 50 Watts.
- Connector: N Female (BNC Optional).
- Impedance: 50 Ohms.
- VSWR (Voltage Standing Wave Ratio): 1.5:1.
NOTE: For models with a BNC connector, the letter 'N' at the end of the model is removed. For example, SYS-1533-1.
