2 Door Kit, Includes: 4 Door Controller CS-40, 2 Readers XPD2-MDB, 25 EM Cards
- Brand / Vendor: SUPREMA
- Hardware Model / MPN: CST2DRD2M(US)
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: SUPREMA | Model / MPN: CST2DRD2M(US)
Availability: Immediate Dispatch from USA Warehouses
CS-40

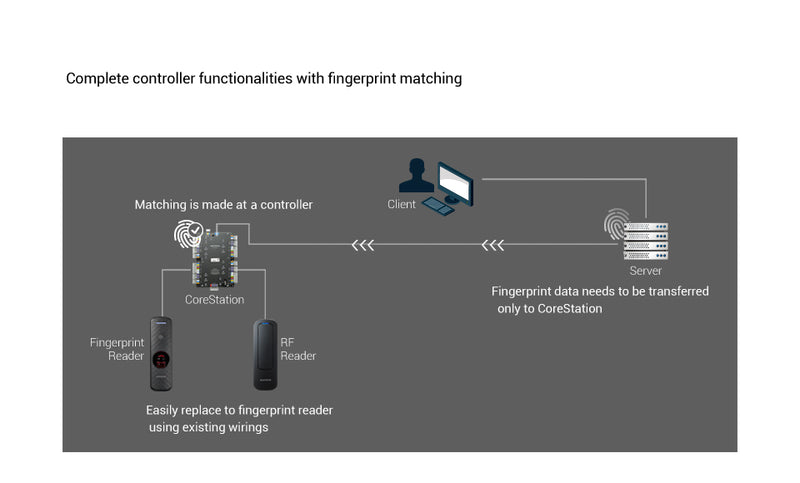

Suprema CoreStation is an intelligent door controller that provides biometric-enabled security advantages over centralized access control systems. Designed up to enterprise-level systems, The CoreStation handles up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec.
Specs:
Capacity
- Max. User (1:1) 500,000
- Max. User (1:N) 100,000
Communication
- TCP/IP (10/100MBps)
- RS-485 OSDP V2
- Multiformat Wiegand In
Connections
- 4 relay outputs NC/NO/COM for locks.
- 8 auxiliary relay outputs NC/NO/COM.
- 2 auxiliary inputs.
- Output button and magnetic sensor by the door.
Power Supply
- 12VDC / 3A. (Not Including)
2 x XPD2-MDB
XPass D2 is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform, optimized for centralized access control systems such as Suprema's CoreStation. Using multi-form factor technology, mullion-type, gangbox-type, and gangbox keypad-type are all supported.
RFID
- RF Option: 125KHz EM, Wiegand Format Card & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
- Mobile Card: NFC, BLE
Protection
- Ingress Protection: IP65, IP67
- Vandal Proof: IK08
Interface
- CPU: 80 MHz
- Memory: 256 KB Flash + 64 KB RAM
- LED: Multiple colors
- Sound: Multi-tone buzzer
- Dimensions (WxHxD): 48 x 114.7 x 27 mm
- RS-485: 1 ch Slave
- Wiegand: 1 ch
