FUENTE DE ALIMENTACIÓN CONMUTADA, SALIDA PICO DE 25 A A 13,8 VDC, POLOS DE ALIMENTACIÓN DEL PANEL FRONTAL, 2 PUERTOS USB: 5,2 V,
- Brand / Vendor: ASTRON
- Hardware Model / MPN: SS25AP
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radio Communication
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico

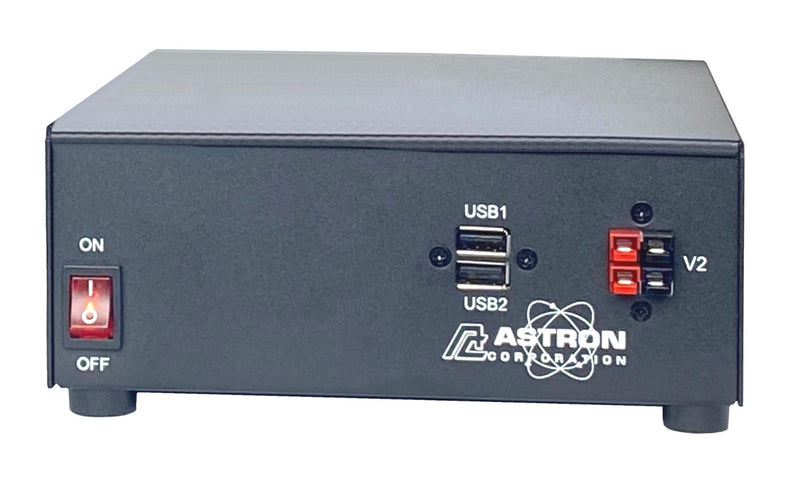

Switched-mode power supply designed for amateur radio applications and electronic systems requiring stabilized current. Employs high-efficiency switching technology to reduce thermal losses and energy consumption. Delivers 13.8 VDC with peak capacity of 25 A and continuous current of 20 A. Integrates built-in protections against overvoltage, overtemperature, and short circuit via fuse. Includes front panel power binding posts and two 5.2 V USB ports for auxiliary device charging.
Main Features
- High-efficiency switching technology
- Overvoltage, overtemperature and fuse protection
- Low-profile design with reduced weight
- Output 13.8 VDC, 20 A continuous, 25 A peak
- CE, Energy Star and RoHS certified
- 2 USB ports 5.2 V, 2.4 A each
Specifications
Electrical Performance
- Output voltage: 13.8 VDC
- Continuous current: 20 A
- Peak current: 25 A
- USB ports: 2 x 5.2 V, 2.4 A
- Technology: high-efficiency switching
Protections and Certifications
- Overvoltage protection
- Overtemperature protection
- Fuse protection
- CE certified
- Energy Star certified
- RoHS certified
Physical and Connectivity
- Low-profile design
- Lightweight construction
- Front panel power binding posts
Typical applications: amateur radio base stations, mobile communication equipment, electronics laboratories and test benches requiring regulated power supplies with peak current response capability.
