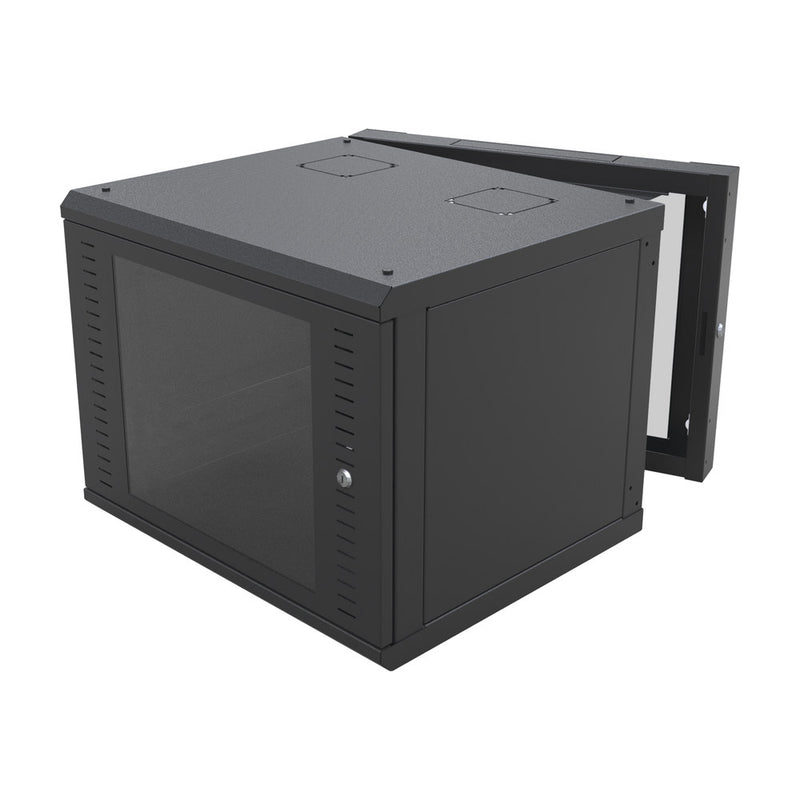

19' 12U Swing-out Wall Mounted Cabinet, Tempered Glass Window

Functional features:

• The body turns on its right axis to work freely with the equipment connections.
• Impact-resistant glass window.
• Removable side.
• Removable front racks.
• Double sheet (front door and side).
• Opening at the top and bottom for wiring to the wall.
• Door can be placed to open in both directions.
• Remove the door.
• Welded frame body for more stability.
• Excellent for repeaters and surveillance equipment.

  Application:
• Radio communication equipment such as repeaters and power supplies.
• Security monitoring stations, recorders and switches.
• Control data centers transmitting via air.
• Managing high-performance copper and fiber patch cable.

Physical Characteristics:

• Application: indoor.
• Material: steel.
• External dimensions: 600 x 620 x 600 mm (W x H x D).
• Rack Units: 12.

They are not prepared for use on the floor (not compatible with wheels)

*1 rack unit = 1.75'' = 44.45 mm (height)


Painting:

• Color: black, semi-matte.
• 5-step electrostatic process: degreasing, rinse, iron phosphate, rinse and sealed.
• Polyester primer.

Compatible Equipment:

• D120-120-60-G00. 6'' fan. The enclosure accepts two fans (not included).
• TORRACK. Rackmount screws.
• TUERRACK. Rackmount nuts.
• Surveillance and radio communication equipment come prepared for 19' rack installation (max. 12 units).


  Recommendations:

Ensure that the installation is performed by a trained professional.

Check if the hardware is properly adjusted periodically.

Set up a maintenance plan to clean the hardware.

* Color may vary. Weight without accessories and packaging. We manufacture cabinets to suit your needs. If you have any questions, please contact us.


Disassembled enclosure






Detail of adjustable pole






Dimensions
