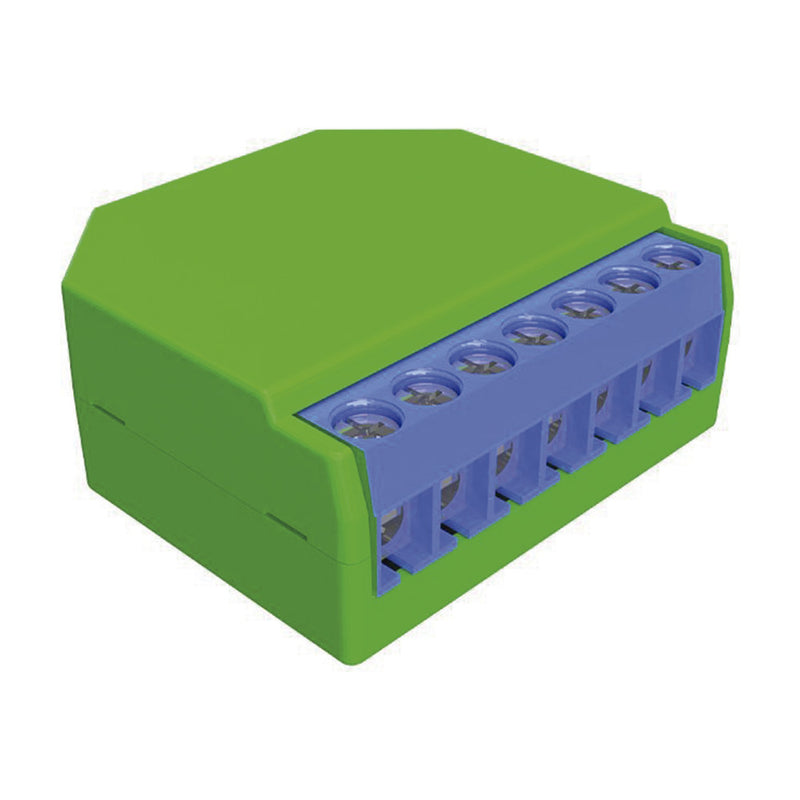

Smart Wireless Relay / Switch for Home Automation, works with iOS and Android App, Max 16A charging / FCC & UL
- Brand / Vendor: SHELLY
- Hardware Model / MPN: SHELLYDIMMER2
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Intrusion Systems
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Main features:
- No hub required
- Dimming without neutral wire (necessary to consider minimum load of 20W)
- Protection against high temperatures
- consumption meter
- Channels: 1
- 2.4GHz Wi-Fi connectivity
Physical and Electrical Characteristics:
- Power: 110-230V, 50/60Hz
- LED dimming: 50-200VA / 10W – 200W
- Incandescent or Halogen Dimming: 10-220W
- Operating temperature: 0 to +40°C
- Consumption current: <1W
- Size 42mm x 36mm x 14mm
- Consider priorly a dimmable light bulb with dimming properties. Without a neutral wire, a minimum load of 20W is required.
WIRELESS
No HUB required – Connect Shelly Dimmer/SL directly to your Wi-Fi at home.
CONTROL REMOTELYL
Control the lighting at home, no matter where you are. Now you won’t be leaving the lights on and your home won’t welcome you in darkness.
HIGHLY COMPATIBLE
Compatible with Android, iOS, Amazon Alexa and Google Assistant.
SUPPORT 100-240 V~ 50/60 Hz
With Shelly Dimmer/SL you can use incandescent and halogen lights: 10-220W, dimmable LED lights: 50-200VA / 10W – 200W or resistive-inductive loads: ferromagnetic transformers 50-150VA. Shelly Dimmer SL 200–240V neutral not required.
ON/OFF AND DIMMING FUNCTION
With Shelly Dimmer/SL you can turn on/off or use dimming function to your lights.
SUNRISE/SUNSET SHEDULES
Shelly Dimmer/SL will automatically follow the sunrise and sunset and can control your lighting accordingly.
WEEKLY SCHEDULES
Choose a time and set your hidden lighting to turn on/off or change color.
OVERHEATING PROTECTION
Internal temperature sensor for overheating protection.
![First slide [900x500]](https://ftp3.syscom.mx/usuarios/ftp/single_page/shelly_img/S0.jpg)
![Second slide [900x500]](https://ftp3.syscom.mx/usuarios/ftp/single_page/shelly_img/S1.jpg)
SAFETY COMES FIRST
Internal temperature sensor for overheating protection. If the PCB temperature goes above a danger level for any reason, the device will turn off.
The relay will turn off the circuit immediately if it detects a consumption higher than the defined over-power setting.
With Shelly Dimmer/SL, you can easily set the ambiance light of any room and control it from anywhere with Shelly Cloud application.
FOR DEVELOPERS
Shelly Dimmer comes with a programming/debug header which can be used to flash alternative firmware on the device. It has an ESP8266 inside, with a 4MB flash chip. A USB-to-UART adapter is needed as well as a reliable 3.3V with at least 350 mA drive capability. The following diagram shows the device pinout:
Use with any bulb you want
Halogen lights and incandescent: 10-220 W
Dimmable LED: 50-200VA / 10W - 200W
Resistive-inductive loads ferromagnetic transformers: 50-150VA
Shelly Dimmer wiring schemes
Single
Switch
Double
Switch
Momentary
Switch
3-way
Switch
Technical specifications
| Feature | Shelly Dimmer |
|---|---|
| Intelligent On/Off/Dimming | ✓ |
| Power Supply: 200-240V ±10, 50Hz AC | ✓ |
| Power Supply: 110-240V ±10, 50/60Hz AC | ✓ |
| Working without neutral line | X |
| Has an integrated power meter. | ✓ |
| Power consumption: <1.5W | ✓ |
| Operational temperature: -0 to +35 °C | ✓ |
| Dimensions (LxWxH): 42 x 36 x 14 mm | ✓ |
| Operational current: 0.25-1.1A | ✓ |
| Device temperature protection: 105°C | ✓ |
| Incandescent and halogen light sources: 10-220W | ✓ |
| Dimmable LED: 50-200VA / 10W – 200W | ✓ |
| Resistive-inductive loads ferromagnetic transformers: 50-150VA | ✓ |
| Complies with the following EU standards: - RE Directive 2014/53/EU - LVD 2006/95/WE - EMC 2004/108/WE - RoHS2 2011/65/UE | ✓ |
| Minimum mounting opening: Ø ≥ 50mm | ✓ |
| Radio signal power: 1mW | ✓ |
| Wireless/WiFi Protocol: 802.11 b/g/n | ✓ |
| Radiofrequency: 2400 – 2500 MHz | ✓ |
| Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials) | ✓ |
| Microprocessor control | ✓ |
| Overload and temperature protection | ✓ |
| Can connect to any Wi-Fi network or can operate as an Access Point | ✓ |
| Controlled via WiFi and a mobile phone, computer, automation system or any other device supporting HTTP and/or UDP protocol and or MQTT. | ✓ |
| Can be operated along with momentary keys or push-button switches | ✓ |
ONE APPLICATION - COUNTLESS POSSIBILITIES
Cloud Application
Shelly Dimmer can be integrated and works with all other Shelly devices in the Shelly Cloud application.
Voice Control
Shelly Dimmer works with Amazon Echo and Google Assistant. Turn on/off the lights and change the colors in your home by voice commands.
Why Shelly Dimmer?
We create the device to cover all possible electrical installations worldwide.
Shelly Dimmer has a complete set of functionalities.
Shelly Dimmer - 110V - 220V AC Power supply
Min. load <10, Max. load 200W
More load types supported
Power meter
Required neutral line
Compatibility
Shelly Dimmer is compatible with Alexa, Google Home, Android, and iOS. With the voice assistants, you can give commands to Shelly with your voice while you are sitting on the couch. And also, you can manage Shelly Dimmer trough your mobile phone while you are at the store.
Amazon Alexa
Google Home
Android
iOS
DOWNLOAD
Download our User Guide and follow the instructions.
INSTALL
Install your Shelly Dimmer your home and connect it to your Wi-Fi network.
APPLICATION
Download and install the free mobile app from Google Play or Apple® App Store.
