SEC1223BBMCE
- Brand / Vendor: SAMLEX
- Hardware Model / MPN: SEC1223BBMCE
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Energy / Tools
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico

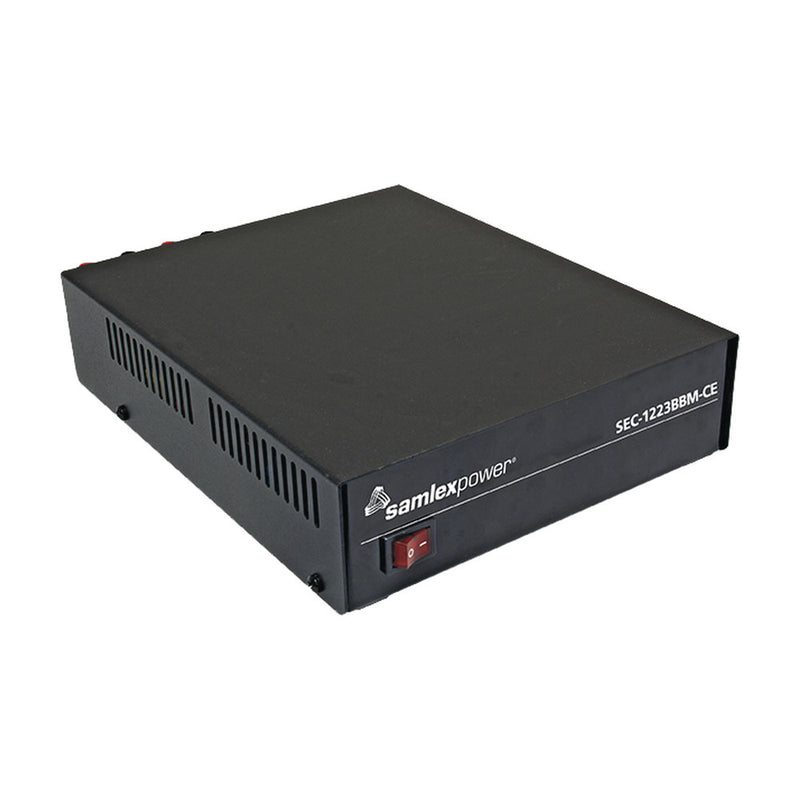

Desktop Switching Power Supply with Battery Backup
The SEC1223BBMCE is a switch-mode power supply designed for battery backup applications in electronic security and telecommunications installations. It operates from 230 Vac input at 50/60 Hz and delivers a regulated 13.8 V output with maximum current capacity of 23 A. The integrated battery backup circuit maintains power delivery during main supply interruptions. Its switch-mode topology ensures power efficiency of 85% +/-5%, reducing thermal dissipation and electrical consumption during continuous operation.
Main Features
- 13.8 V output, 23 A maximum current
- Switch Mode technology with 85% +/-5% efficiency
- Integrated battery backup circuit
- Short circuit and overload protection
- Compact desktop design
- Compliance with European and Australian standards
Electrical Performance
- Input: 230 Vac, 50/60 Hz
- Output: 13.8 V, 23 A maximum
- Efficiency: 85% +/-5%
- Technology: Switch Mode
- Integrated battery backup circuit
Protections and Certifications
- Short circuit protection
- Overload protection
- European standards compliance
- Australian standards compliance
Physical and Design
- Form factor: desktop
- Compact portable design
Typical applications: battery backup systems in electronic security installations, telecommunications equipment, communication radios, and devices requiring uninterruptible 13.8 V power supply.
