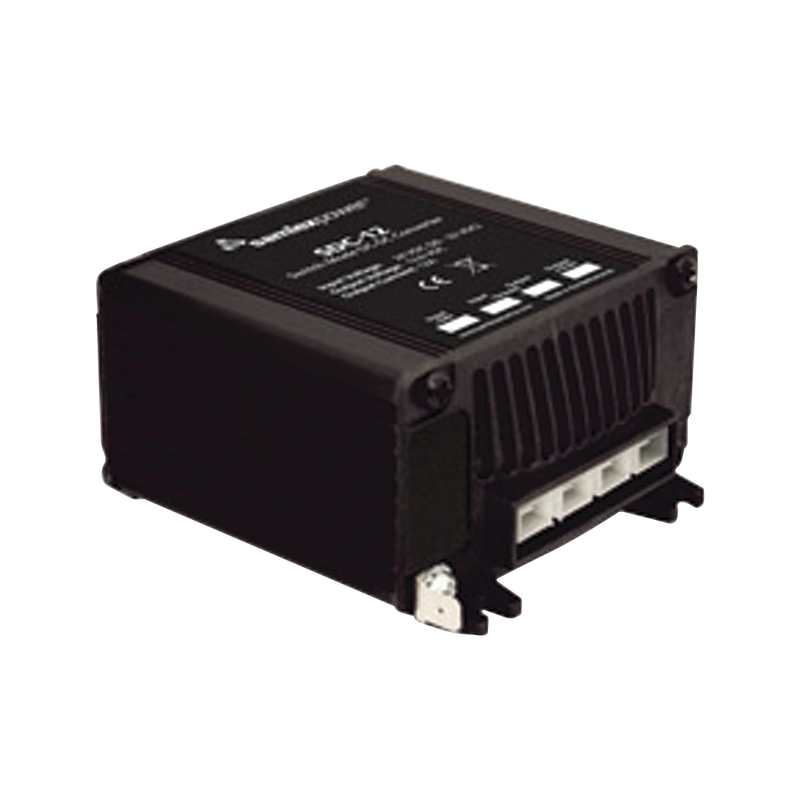

24 VDC - 12 VDC Converter
- Brand / Vendor: SAMLEX
- Hardware Model / MPN: SDC12
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radio Communication
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 12 Amps. The SDC-12 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include short-circuit, reverse polarity and over-voltage protection.
| Input | 20-32 VDC |
| Output | 13.8 VDC |
| Amps | 12 Amps |
| Weight | 1 (lbs) |
| Weight | 0.45 (kg) |
| Dimensions | 4 x 3.5 x 2 (in) |
| Dimensions | 10.2 x 8.9 x 5.1 (cm) |
| Warranty | 2 Year Limited |
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
