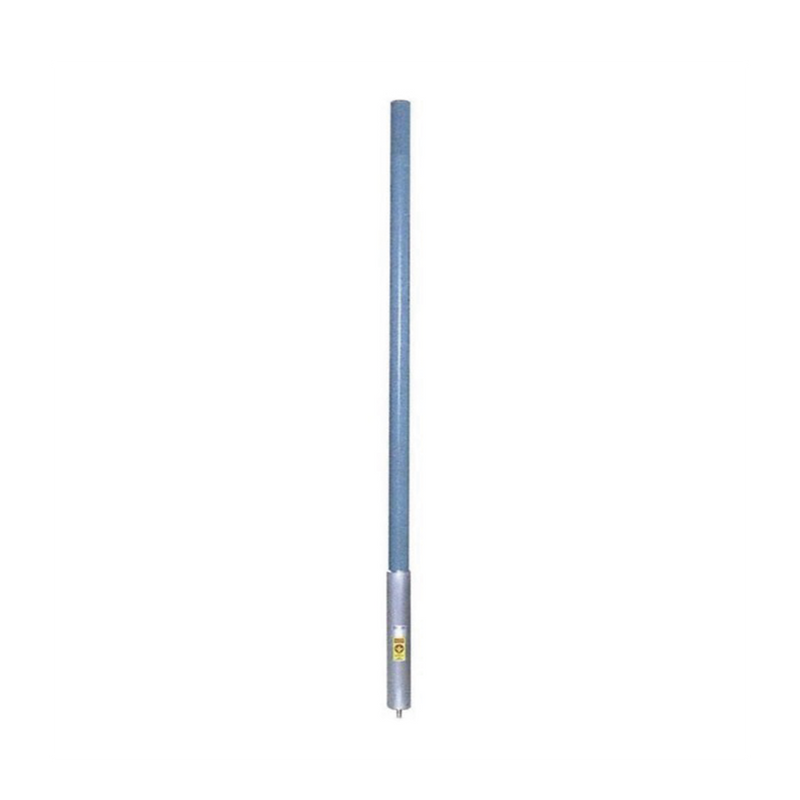

'Aurora' Base Fiberglass Collinear Omni Antenna, 450-512 MHz, 6 dB, 500 Watt, Heavy Duty, Low-PIM, 7-16 DIN Female, Optional Downtilt: 0 to 10 Degrees.
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All SINCLAIR Products

'Aurora' Base Fiberglass Collinear Omni Antenna, 450-512 MHz, 6 dB, 500 Watt, Heavy Duty, Low-PIM, 7-16 DIN Female, Optional Downtilt: 0 to 10 Degrees.

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: SINCLAIR
  • Hardware Model / MPN: SC366-HF2LDF
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Networking & Telecom Infrastructure
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
$2,779.91
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units $2,779.91 Standard
5 - 9 units $2,640.91 Save 5%
10+ units $2,501.92 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$2,779.91
Standard Catalog
5 – 9 Units
$2,613.12
Save ~6%
10+ Units
$2,446.32
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing



      Aurora Fiberglass Collinear Antenna, 450-512 MHz, 6 dB, 7-16 DIN-Female.

  • Frequency Range: 450-512 MHz.
  • Bandwidth: 62 MHz.
  • Gain (nominal): 6 dBd (8.1 dBi).
  • VSWR (max): 1.5:1
  • Polarization: Vertical.
  • Impedance: 50 Ohm.
  • Pattern: Omni-directional.
  • Vertical beamwidth (typ): 15º
  • Average Power Input (max): 500 Watt.
  • Pasive Intermod. (2x20W, 3rd ord): -150 dBc.
  • Lightning protection: Lightning spike.
  • DC Ground: YES.
  • Connector: 7/16 DIN-Female.
  • Dimensions (Height/Width/Depth): 108/ 3.5/ 3.5 in.
  • Weight (Shipping) : 22 (54) lbs.
  • Rated wind velocity: 250 mph.
  • Electrical tilt (available): 0 to 10 degrees.
  • No Mounting Hardware included.
  • Requires two CLAMP-006C by antenna.
