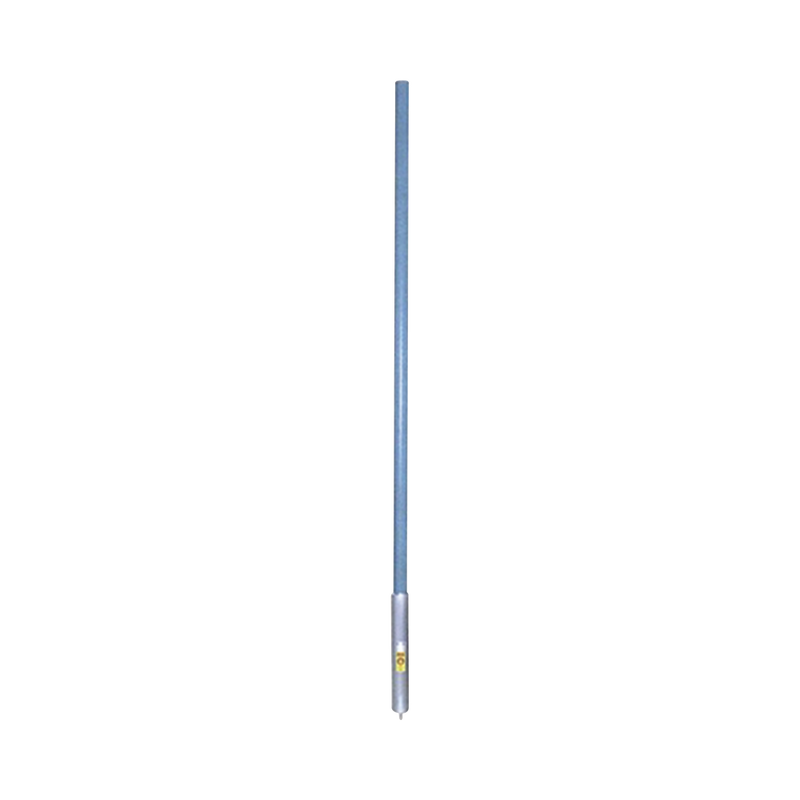

'Aurora' Base Fiberglass Collinear Omni Antenna, 430-450 MHz, 6 dBd, 500 Watt, Heavy Duty, N Fem, Optional Downtilt: 0, 3 or 6 Degrees
- Brand / Vendor: SINCLAIR
- Hardware Model / MPN: SC346-HF2SNF
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Fiberglass Collinear Antenna, 430-450 MHz, 6 dB, N Female.
- Frequency Range: 430-450 MHz.
- Bandwidth: 20 MHz.
- Gain (nominal): 6 dB (8.1 dBi).
- VSWR (max): 1.5:1
- Polarization: Vertical.
- Impedance: 50 Ohm.
- Pattern: Omni-directional.
- Vertical beamwidth (typ): 12º
- Average Power Input (max): 500 Watt.
- Ligthnining protection: DC Ground.
- Connector: N Female.
- Mounting Hardware (Optional) 2 CLAMP 130 Sugested.
- Dimensions (Height/Width/Depth): 126/ 2/ 2 in.
- Base pipe diameter: 2 in
- Base pipe mounting length: 12 in.
- Weight: 9.5 lbs.
- Rated wind velocity: 180 mph.
*Ask for delivery time.
