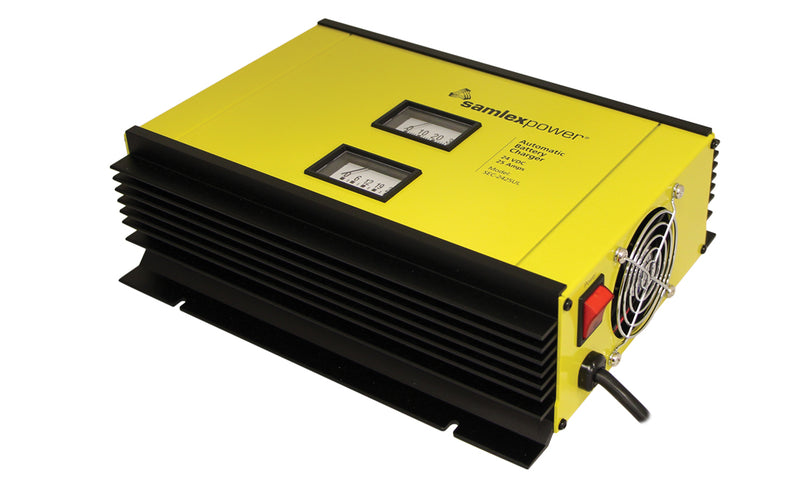

Battery Charger for Lead Acid Batteries 24 Volts, 25A
- Brand / Vendor: SAMLEX
- Hardware Model / MPN: SEC-2425-UL
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: CCTV & Video
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: SAMLEX | Model / MPN: SEC-2425-UL
Availability: Standard Supplier Lead Time
SEC-UL Series Industrial Chargers
SEC-2425-UL
Main Features
- High efficiency, lightweight, and quiet operation.
- Fully automatic 'plug and forget' operation.
- Integrated ammeter.
- Operation mode as a power source with DC backup.
Power Source Function and DC Backup Power Source
The SEC-UL series industrial chargers from Samlex America can be used as a power source and as a backup power source.
Using as a power source:
- When the charger is used as a power source, only the load is connected directly to the charger at the negative terminal and one of the three positive terminals. Note that the load consumption should not exceed the charger's capacity.
Using as a backup power source:
- When the charger is used as a backup power source, it is necessary to modify the configuration of the charger's DIP switches as follows:
- Once the DIP switch configuration is modified, the load must be connected directly to the battery - it is recommended to use a switch between the load and the battery - with the load turned off.
- Then, connect the charger to the battery. Once connected, the charger’s power supply is turned on. The charger will start supplying current to the battery depending on its charge level, ensuring that it remains charged. In case of a power failure, the load will be directly powered by the battery, and once power is restored, the charger will resume charging the battery.
Protections:
- Short circuit.
- Reverse battery polarity.
- Overcurrent.
Technical Specifications:
Input Voltage: 120/220* VAC.
Charging Current: 25 A.
Output Voltage (nominal): 24 VDC.
Dimensions: 331 x 244 x 97 mm
Weight: 4.1 kg
*Selectable via internal jumper.
-
Test bench
-
Automotive
-
Marine
-
Communications sites
-
Battery back-up systems
-
Hobby
