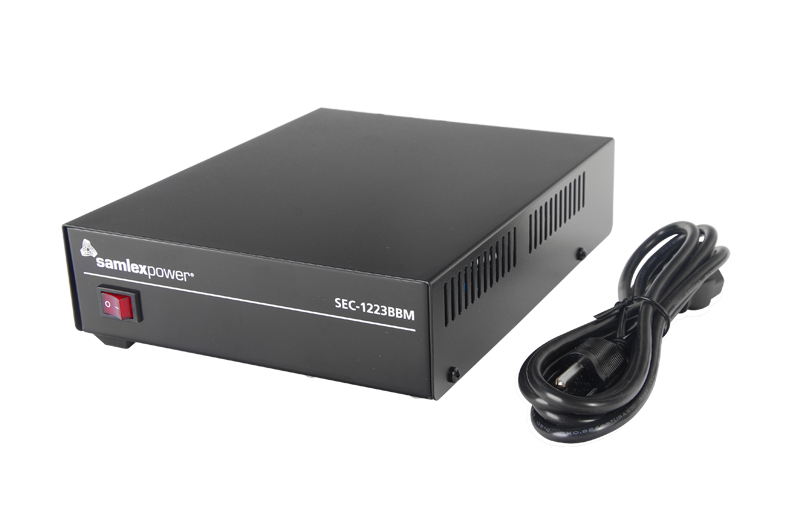

Desktop Switching Power Supply, Commuted Power Supply SAMLEX 13.8 Vdc , Maximum Current 23 A. Circuit for Backup Battery Included
- Brand / Vendor: SAMLEX
- Hardware Model / MPN: SEC-1223BBM
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: SAMLEX | Model / MPN: SEC-1223BBM
Availability: Standard Supplier Lead Time
• Advanced Switch Mode Technology
• Reliable, 12V Nominal DC Uninterruptible Power Source (DC UPS) in conjunction with external 12V Lead Acid Battery backup
• High efficiency, compact and portable
• Protected against short circuit, overload, over-voltage, and over-temperature
• Cooling by temperature-controlled fan improves efficiency and prolongs the life of the fan
• UL safety listed as “Information Technology Equipment Power Supply” for USA (UL Standard ANSI/UL-60950-1) and for Canada (CSA Standard CAN/CSA-C22.2 No. 60950-1)
• Complies with FCC Part 15(B), Class B for limits on conducted and radiated Electromagnetic Interference (EMI)
• Built-in Battery
• Backup Circuit
• Input Voltage: 120 VAC Nominal (+6% / -10%), 60 Hz
• Output Voltage Load Terminals: 13.8 VDC / Battery Terminals: 13.8 VDC
• External Battery (Not included) Voltage / Capacity 12V / 40Ah to 100Ah; Lead Acid
• Forced Air Temperature controlled fan (ON when internal hot spot ≥ 158°F (70°C)
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Dimensions: (W x D x H) 7.28 x 9.47 x 2.40' (185 x 240.5 x 61 mm)
• Weight: 3.4 lb (1.6 kg)
