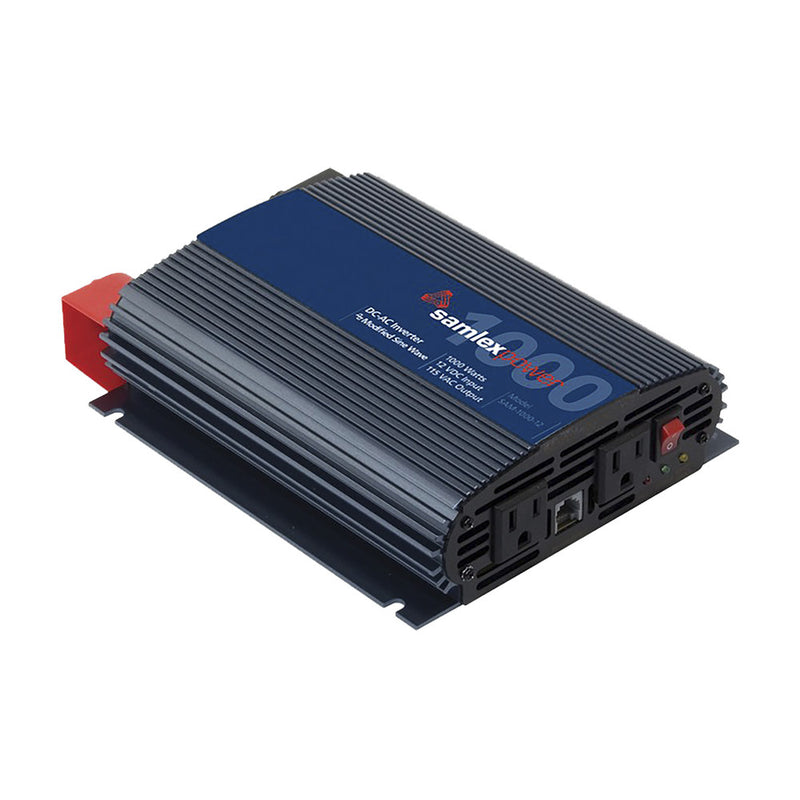

1000 Watt Modifed Sine Inverter, Input: 12 Vdc, Output: 115 Vac 60HZ
- Brand / Vendor: SAMLEX
- Hardware Model / MPN: SAM-1000-12
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Energy / Tools
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Modified sine wave power inverter with 1000 W nominal output. Converts 12 Vdc input voltage to 115 Vac at 60 Hz. Designed for backup or mobile power applications where pure sine wave is not required. Features two NEMA 5-15R receptacles for load connection. Equipment not designed for continuous use.
Main Features
- Nominal power: 1000 W
- Input: 12 Vdc (range 10.5 - 15.0 V)
- Output: 115 Vac, 60 Hz
- Two NEMA 5-15R output receptacles
- Modified sine wave
- Integrated protections: thermal, overload, short circuit and ground fault
- Load-controlled cooling fan
- Not designed for continuous use
Electrical Performance
Input voltage: 12 Vdc
Input range: 10.5 - 15.0 V
Output voltage: 115 Vac
Output frequency: 60 Hz
Nominal power: 1000 W
Wave type: Modified sine
Output contacts: 2 (NEMA 5-15R)
Usage: Not designed for continuous use
Physical & Protections
Dimensions: 180 x 250 x 59 mm (7.1 x 9.8 x 2.3 in)
Weight: 1.69 kg (3.7 lb)
Thermal protection: Yes
Overload protection: Yes
Short circuit protection: Yes
Ground fault protection: Yes
Fan: Load-controlled
Typical applications: Backup power systems in recreational vehicles, marine vessels and mobile applications requiring 12 Vdc to 115 Vac conversion for standard consumer equipment.
