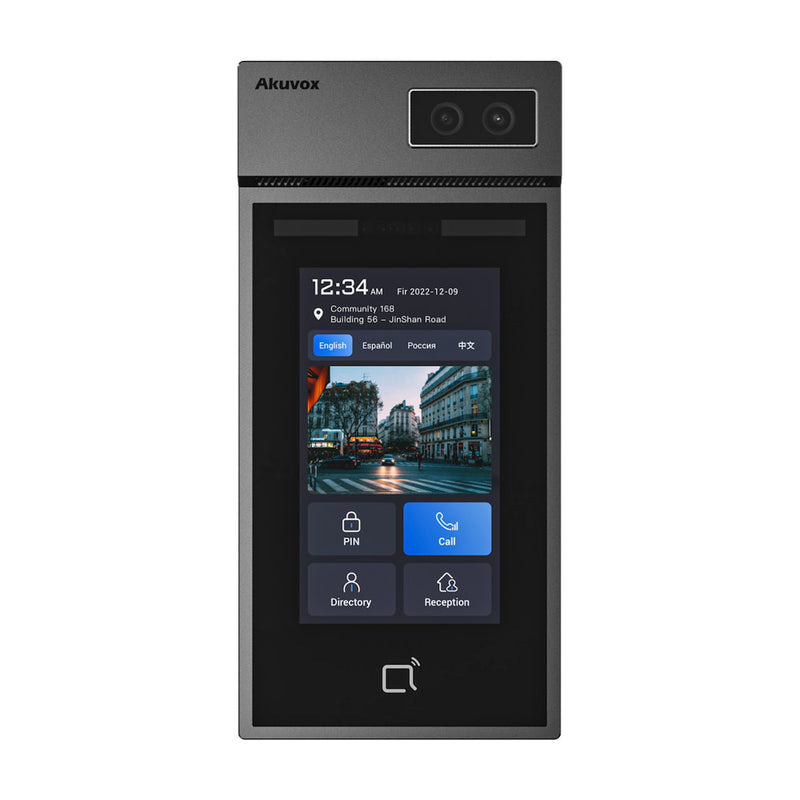

Akuvox S535 / Smart Access Control Terminal / 5' Touchscreen / 2MP Camera / Face Recognition / Multi-Access (Card, PIN, BLE, QR) / IP66 & IK08 / PoE / SIP & ONVIF
- Brand / Vendor: AKUVOX
- Hardware Model / MPN: S535
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Akuvox model: S535
The Akuvox S535 is a smart access control terminal engineered for professional security deployments across condominiums, apartment complexes, office spaces, gated residential communities, and industrial facilities. Built around a Linux operating system with an aluminum front panel and a 5-inch IPS LCD touchscreen, the S535 delivers a responsive and intuitive user interface. Multi-way access is supported through facial recognition, EM/Mifare/DesFire (EV2/EV3)/Felica cards, PIN codes, BLE (Bluetooth 5.0), and QR code scanning, with a capacity of up to 20,000 users and 20,000 face templates. The integrated 2MP wide-angle camera with HDR technology captures video at up to 1080p resolution at 30 fps, while two-way audio communication over IP networks features echo cancellation, voice activation detection, and a comfort noise generator for clear visitor-intercom interactions. SIP and ONVIF compliance ensure seamless integration with third-party video components, NVRs, and existing VoIP infrastructures. Housed in an IP66 and IK08 rated enclosure, the terminal operates reliably in extreme temperatures ranging from -40°F to 131°F (-40°C to +55°C), making it suitable for outdoor and high-traffic environments.
General Characteristics
- Front Panel: Aluminum
- Display: 5-inch IPS LCD touchscreen
- Operating System: Linux
- Main Camera: 2 Megapixel, auto-lighting
- Light Sensor: Supported
- Motion Sensor: Supported
- BLE: Bluetooth 5.0
- Tamper Alarm: Supported
- Expandable Module: LTE, Fingerprint, or Induction Loop
- Installation: Flush-mounted & Surface-mounted
- Compliance: SIP & ONVIF
Networking & Protocols
- Supported Protocols: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Ethernet: 1x RJ45, 10/100 Mbps adaptive
- Two-Way Audio: Over IP networks with echo cancellation
Deployment & Maintenance
- Auto-Provisioning: Supported
- Web Management Portal: Supported
- Web-Based Packet Dump: Supported
- Configuration Backup/Restore: Supported
- Entry Log Export: Supported
- Access Table Export/Import: Supported
- Firmware Upgrade: Supported
- System Logs: Includes door access logs
