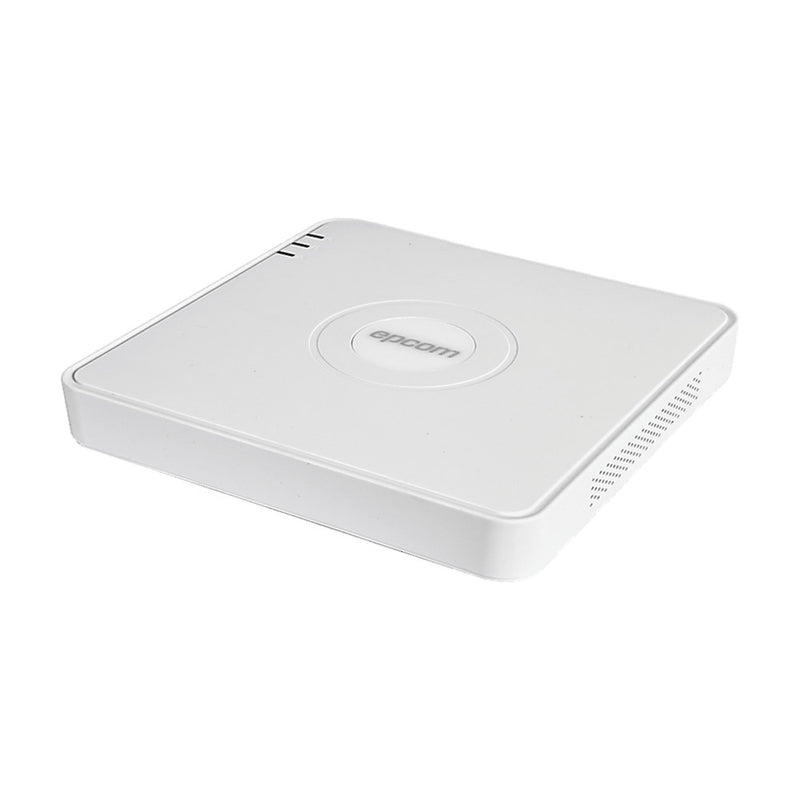

(COMPATIBLE HIK-CONNECT) DVR 1080p Lite / 16 Channels TURBOHD + 2 Channels IP / Support 1 Hard Disk / Full HD Video Output / H.265+/ AHD, TVI, CVBS, CVI / 1 Channel Audio

¿What is HD-TVI 1080P Lite?

Allows 720P DVRs to add 1080P (2 Megapixel) HD-TVI TurboHD and HD-CVI cameras (other manufacturers) with 960 x 1080 resolution. Remember that Full HD is 1920 x 1080, so the DVR will not be able to reach to record to Full HD. With this advantage, we can use motorized lens TURBOHD cameras to move the lens remotely.

Features:

• TURBOHD technology 1080P Lite Ver. 3.0

• Support 5 technologies TVI / CVI / AHD / Analog / IP

• Support 16 channels TURBOHD / analog + 2 channels IP = 18 channels in total.

• 1 Audio Input / 1 Audio Output (RCA connector).

• Support compresion H.265+ / H.265 / H.264+ / H.264.

• Compatibility with Internet Explorer / Chrome (ietab).

• Capacity for 1 SATA 10 TB HDD.

• Video HDMI / VGA Simultaneous output Full HD 1080p.

• Supports DDNS Hikvision Service.

• Supports P2P Hik-Connect.

• Compatible with client software iVMS-4200 (Windows, IOS), Hik-Connect (Android, iPhone, iPad, iPod Touch).

Video Channels:

• HD-TVI: 1080p Lite / 720p@ 12 IPS.

• CVBS: WD1@ 30 IPS.

• AHD: 1080p Lite / 720p@ 12 IPS.

• CVI: 1080p Lite / 720p@ 12 IPS.

• IP: 5 Megapixel

• BNC Connector.

Video Coding:

• Main stream: 1080P Lite / 720p / WD1 / VGA / 4CIF.

• Sub stream:  CIF / QCIF

• Bitrate: 32 Kbps up to 6 Mbps.

Video Output:

• Video de HDMI and VGA simultaneous output.

• Supported Resolutions: 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768.

Recording:

• Recording with automatic overwriting.

• Configurable to start recording with only one click.

• Recording programming through calendar, manual, or event.

Search and Playback:

• Instant playback of a camera in live Multi-Vista mode.

• Simultaneous synchronous 4-channel playback at 1080p Lite in forward/backward.

• Local and remote playback, with log or event search.

• Recording Identification through tags and playback through tags.

• Important segment block to avoid overwriting.

Events:

• Audible alert, Pop-Up, e-mail notification, and notification to the monitoring center when an event is triggered.

• Movement detector alarm, camera block, and disconnection, configurable by channel.

• Monitor HDD status, network, entries, and camera status with remote notifications.

Network:

• 6 simultaneous users.

• Supports Main and Sub Stream.

• Supported Protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP, HTTPS.

Interface:

• 1 Network Port: RJ-45 10/100 Mbps.

• 2 USB 2.0 Ports (Supports Mouse, included).

Physical and Electrical Characteristics:

• Power Supply: 12 Vcc (Included)

• Consumption: Max. 8 W.

• Operating Temperature: 14 ~ 131°F (-10 ~ 55 ºC).

• Dimensions: 7.87 x 7.87 x 1.77' (200 x 200 x 45 mm).

• Weight: 1.76 lb (800 g).

• 5-year warranty.
