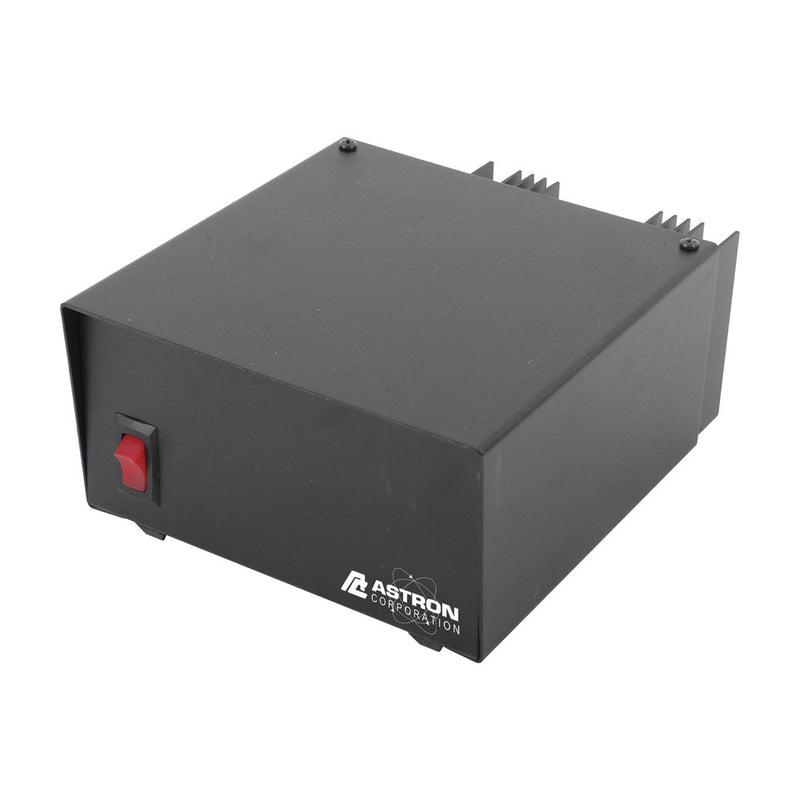

Astron Linear Power Supply 13.8 Vdc, 12A Max
- Brand / Vendor: ASTRON
- Hardware Model / MPN: RS-12A
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Linear Power Supply / 13.8 Vdc / 12A Max / Solid-State Regulation
The RS-12A is a linear regulated DC power supply designed for radio communication equipment and other electronics requiring stable 13.8 Vdc output. It employs solid-state electronic regulation to maintain consistent output voltage even under varying input conditions and load demands. The unit incorporates a heavy-duty heatsink for thermal management during extended operation at continuous current levels. A current limiter protects the supply from damage due to output overload or short-circuit conditions. The design maintains regulation at reduced input voltages, ensuring operational stability in environments with fluctuating AC mains.
Main Features
- Solid-state electronic regulation
- Current limiter for overload protection
- Heavy-duty heatsink for continuous operation
- Maintains regulation at low input voltages
- Recommended for radios up to 30W power output
Performance
- Input voltage: 115 Vac / 60 Hz
- Output voltage: 13.8 Vdc
- Output current: 9 A continuous / 12 A max
- Battery charger: No
Physical & Electrical
- Weight: 5.9 kg (13.0 lb)
- Dimensions: 20.6 x 12 x 23 cm (8.1 x 4.7 x 9.1 in)
Typical applications: two-way radio base stations, amateur radio transceivers, test bench power, and communication equipment requiring clean, regulated DC power without switching noise.
