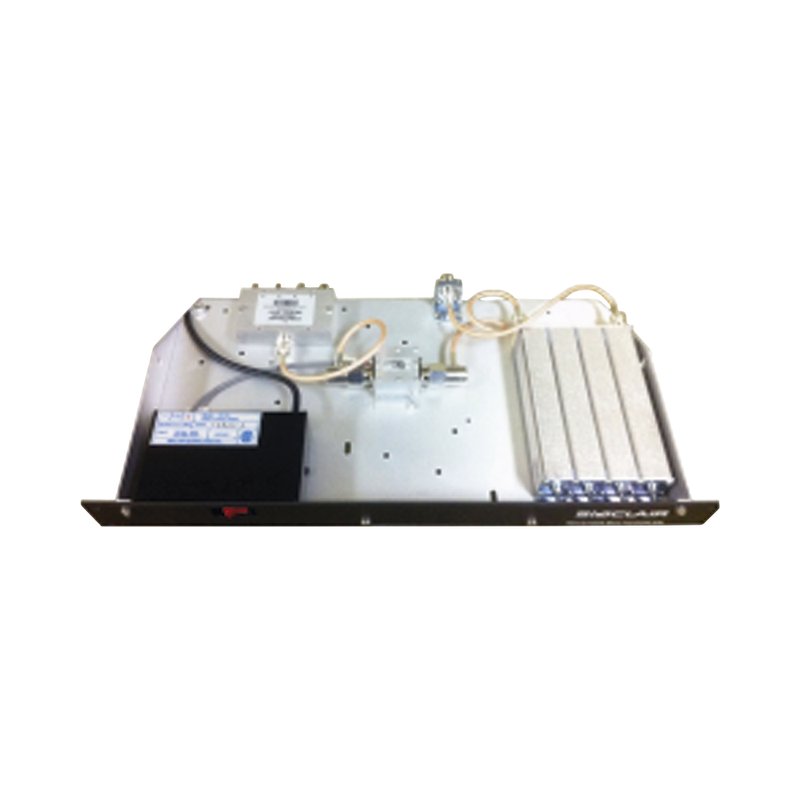

Multicoupler with Preselector for 4 Channels, 440-470 MHz, 1 MHz B/W, 115 Vac, N Females.
- Brand / Vendor: SINCLAIR
- Hardware Model / MPN: RM301-204G11N
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Multicoupler with Preselector for 4 Channels, 440-470 MHz, 1 MHz B/W.
Electrical Specifications
- Frequency Range: 440-470 MHz.
- Number of Channels: 4
- Bandwidth: 1 MHz.
- System Gain (min.): 2 dB.
- Input Connectors (Ant./Output): N Females.
- Input / Output VSWR (máx.): 1.5: 1
- Impedance: 50 Ohm.
- Power Consumption (Typ): 4 Watt.
- 1 dB Compression Point: 24 dB.
- Isolation Rx to Rx: 20 dB.
- Supply Voltage: 115-220 Vac.
Mechanical Specifications
- Width: 19 in (483 mm)
- Depth: 10 in (254 mm)
- Length / Height: 1.78 in (45 mm)
- Weight: 5.5 lbs (2.5 kg)
- Actual Shipping Weight: 10 lbs (4.54 kg)
- Shipping Dimensions: 22 x 18 x 4 in (559 x 457 x 102 mm)
Environmental Specifications
- Temperature Range: -22 to +140 °F (-30 to +60 °C)
