Item#: RFN-1006-49I Browsing History
RF INDUSTRIES,LTD »

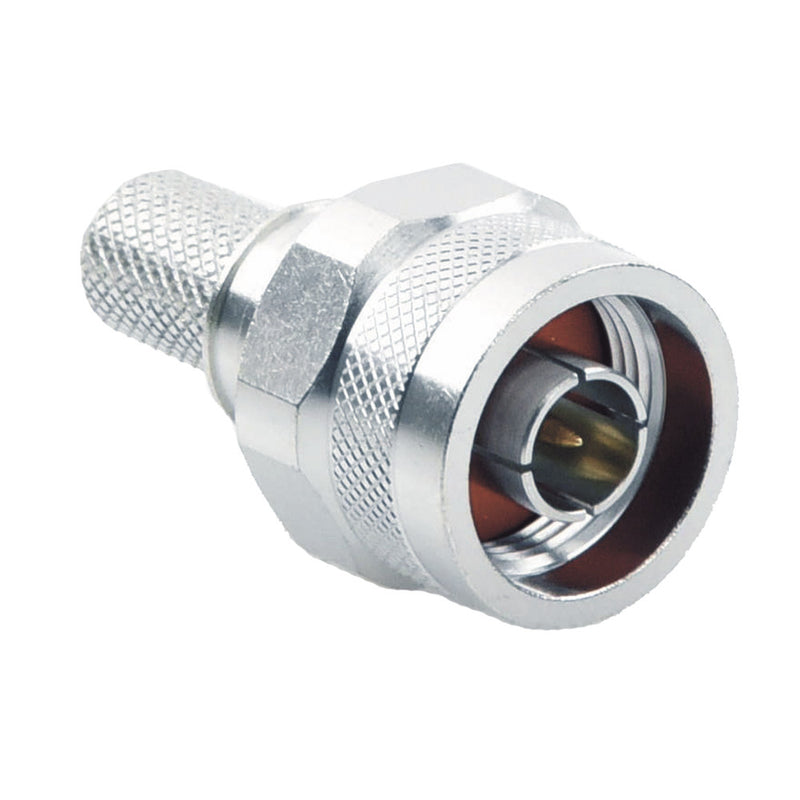

N Male Connector with Captivated PIN to Crimp on LMR-400, 9913, CNT-400, RG8/U-SYS, RFLASH-1113, 7810A, 8214.
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All RF INDUSTRIES,LTD Products
⚡ SPECIAL DEAL • 20% OFF • Direct EPCOM USA Warehouse Stock

N Male Connector with Captivated PIN to Crimp on LMR-400, 9913, CNT-400, RG8/U-SYS, RFLASH-1113, 7810A, 8214.

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: RF INDUSTRIES,LTD
  • Hardware Model / MPN: RFN-1006-49I
  • Deal Status: ⚡ Special Deal (20% OFF)
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Networking & Telecom Infrastructure
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
⚡ SPECIAL DEAL 20% OFF
Deal expires in: 00:00:00
EPCOM Official Warehouse Promotional Price
$25.38 $31.72
Save: $6.34 (20% OFF)
52+ in stock • Ships from USA Warehouses
Volume Contractor Pricing:
1 - 4 units $25.38 Standard
5 - 9 units $24.11 Save 5%
10+ units $22.84 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$25.38
Standard Catalog
5 – 9 Units
$23.86
Save ~6%
10+ Units
$22.33
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing

General Overview

The N Plug Crimp from RF Industries is a specialized connector designed for radiofrequency applications. It features 50 Ohm impedance and operates within a frequency range of 0 to 11 GHz, making it suitable for a wide range of uses. Its low voltage standing wave ratio (VSWR) ensures optimal performance up to 8 GHz. Designed to withstand working voltages of up to 1K V rms at sea level, it features a minimum insulation resistance of 5k M Ohms. Its operating temperature range varies from -65°C to 165°C, ensuring functionality in extreme environments.



  • Type recommended cable: LMR-400, 9913, 7810A, 8214, CNT-400, RG8/U-SYS, RFLASH-1113

Technical Specifications

  • Impedance: 50 Ohms
  • Frequency Range: 0-11 GHz
  • VSWR: <1.10:1 up to 3 GHz, <1.2:1 at 8 GHz
  • Maximum Working Voltage: 1K V rms
  • Insulation Resistance: 5k M Ohms
  • Temperature Range: -65°C to 165°C

Functionalities

  • Insertion Loss: 0.06 dB max
  • Compatibility: Times LMR-400, Commscope CNT-400, Belden 8214 & 9913

Advanced Specifications

  • Crimp Recommendation: Die .429'
  • Requirements: Suitable for solid central conductors

Applications and Use Cases

Applications in data communications and telecommunications requiring high-frequency handling capacity and low VSWR.
