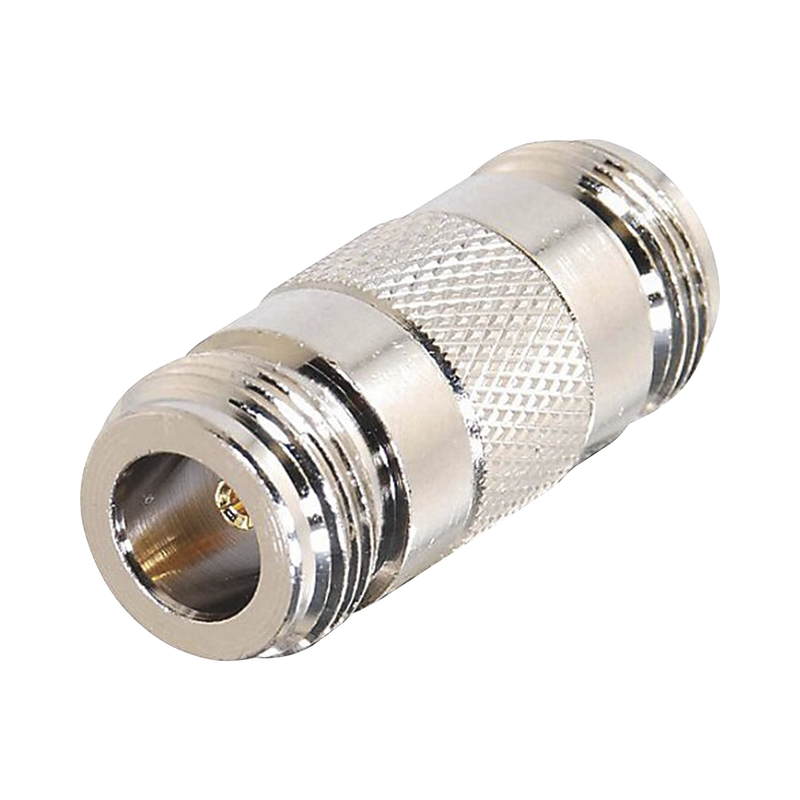

50 Ohm Straight Barrel Adapter, from N Female to N Female Connector, Silver/ Gold/ PTFE.
- Brand / Vendor: RF INDUSTRIES,LTD
- Hardware Model / MPN: RFN-1013-1
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: RF INDUSTRIES,LTD | Model / MPN: RFN-1013-1
Availability: Immediate Dispatch from USA Warehouses
General Overview
The N Jack to Jack adapter from RF Industries is an essential component designed to connect frequency systems up to 11 GHz with a constant impedance of 50 Ohms. It offers high precision and reliability, making it ideal for applications demanding low VSWR performance of 1.1 at 5 GHz. This adapter is built with high-quality materials, including a brass body and phosphor bronze contact, both with a silver finish, and a PTFE insulator to ensure optimal isolation.
- Adapter Type: Barrel, N Female to N Female Connector.
Technical Specifications
- Body: Silver-plated Brass
- Insulator: PTFE
- Contact: Silver-plated Phosphor Bronze
- Temperature Range: -65°C to 165°C
- Insulation Resistance: 5k M Ohms minimum
Functionalities
- Impedance: 50 Ohms
- Frequency Range: 0 to 11 GHz
- VSWR: 1.1 at 5 GHz
Advanced Specifications
- Thread: 5/8-24 UNEF-2A
- Total Length: 1.500 [38.10 mm]
- Diameter: Ø .630 [16.00 mm]
- Standards: Compliant with MIL-STD-10
- Tolerances: Diameter ±.002 [.05 mm] and Linear ±.005 [.13 mm]
- Working Voltage: H = √ rms @ sea level
Applications and Use Cases
Ideal for engineers and technicians involved in the integration of high-frequency RF systems.
