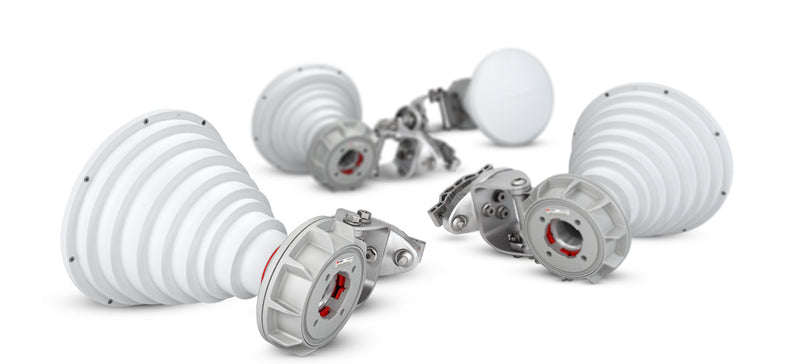

Symmetrical Horn TP Antenna GEN2 of 80-deg, 5180-6400 MHz, 10.4 dBi with Improved Support, Ready for TwisPort without Loss
- Brand / Vendor: RF ELEMENTS
- Hardware Model / MPN: HG3-TP-S80
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Hardware
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: RF ELEMENTS | Model / MPN: HG3-TP-S80
Availability: Immediate Dispatch from USA Warehouses
Game Changing Sector Antennas
Symmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPortTM (TP) connector. Deployed in the field since 2014, they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection, network scalability, and throughput increase.
Approved by tens of thousands of installations all around the globe, RF elements Symmetrical Horn TP Antennas are the new standard for fast and sustainable wireless.
Unique Beam Performance
Symmetrical Horn TP Antennas have a unique beam shape and characteristics. The beam section is circular: azimuth and elevation radiation angles are identical.
No Side Lobes
Symmetrical Horn TP Antennas have no side lobes, they literally focus energy into one main signal beam. Such behavior saves the most important resource in wireless - the spectrum. Thanks to these unique radiating properties, the radio collects and propagates significantly less noise in comparison to current mainstream sector antennas.
The problem of noise is directly connected to antenna side lobes - basically an unavoidable feature in most competitive products. Symmetrical Horn TP Antennas behave differently, being basically 'deaf' outside their main beam.
Wideband Performance
The beam pattern does not vary with frequency and the antenna gain is balanced over a very wide frequency range. These features make Symmetrical Horns TP antennas excellent sector antennas.
Excellent Gain Across Spectrum
Coverage Without Null
Mainstream sector antennas have a radiation pattern that is very wide in azimuth cut but very flat in elevation cut. If an AP is too high, the customers that are too close will suffer from low AP signal.
Co-Location Miracle
Symmetrical Horn TP Antennas have naturally attenuated side lobes and extremely low back radiation. Symmetrical Horn TP Antennas are perfect for high-density cluster sector installations with high co-location requirements. Wide selection of beam angles allows for a wide range of deployment scenarios, covering high distance sectors as well as MicroPoPs.
Breakthrough Scalability
Symmetrical Horn TP Antennas offer breakthrough scalability of wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.
Symmetrical Horn TP Antennas come with precise radiation angles, ranging from 30 to 90 degrees: a wide range of models suitable for any situation.
TwistPortTM Connector
Symmetrical Horn TP Antennas feature our industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless: with radios built according to our Reference design, there are no coaxial RF connectors or RF cables that cause signal loss. Connecting radios is brilliantly simple - “twist and lock” - all done with one hand!
Cross-Platform Compatibility
Our wide range of TwistPort™ Adaptors allows you to connect most popular connectorized radios from other vendors, such as UBNT™, Mimosa™, MikroTik™ or Cambium Networks™, directly to any TwistPort™-enabled antenna.
Compact Size
Symmetrical Horn TP Antennas are very compact, with only 20-25% footprint of traditional sector antennas. This compact size saves tower rental fees and makes it possible to install Symmetrical Horn TP Antennas in places where regular sectors would not be allowed due to their shape and size.
