(LHG HP5) High Power Station (CPE) 5GHz 802.11 a/n with 24.5dBi PTP Grid Antenna, Power 630mW
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All MIKROTIK Products

(LHG HP5) High Power Station (CPE) 5GHz 802.11 a/n with 24.5dBi PTP Grid Antenna, Power 630mW

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: MIKROTIK
  • Hardware Model / MPN: RBLHG-5HPND
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Networking
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
$116.08
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units $116.08 Standard
5 - 9 units $110.28 Save 5%
10+ units $104.47 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$116.08
Standard Catalog
5 – 9 Units
$109.12
Save ~6%
10+ Units
$102.15
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing

\\

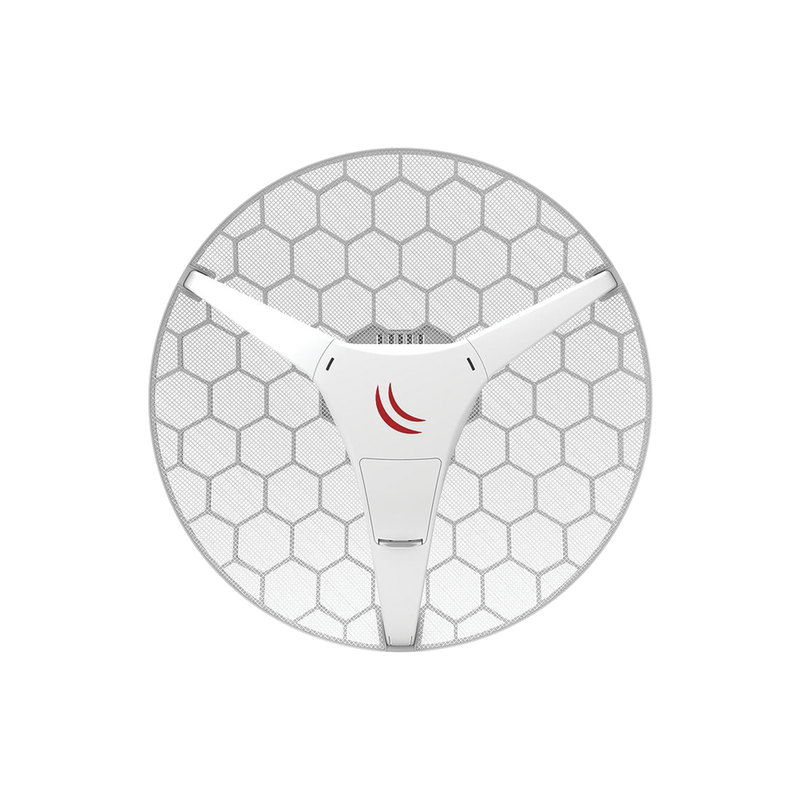

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna. LHG HP5 comes with two times more output power than our regular LHG 5, and is designed to reach up to 60% longer distances.



The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

Specifications

Details
Product code RBLHG-5HPnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions Ø 391 x 222 mm;
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C


Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W
FAN count Passive
PoE in Passive PoE
PoE in input Voltage 10-28 V


Wireless specifications

Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 24.5
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4


Ethernet

Details
10/100 Ethernet ports 1


Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS


Wireless specifications

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 25 -80
MCS0 28 -96
MCS7 24 -75



Included parts







The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
