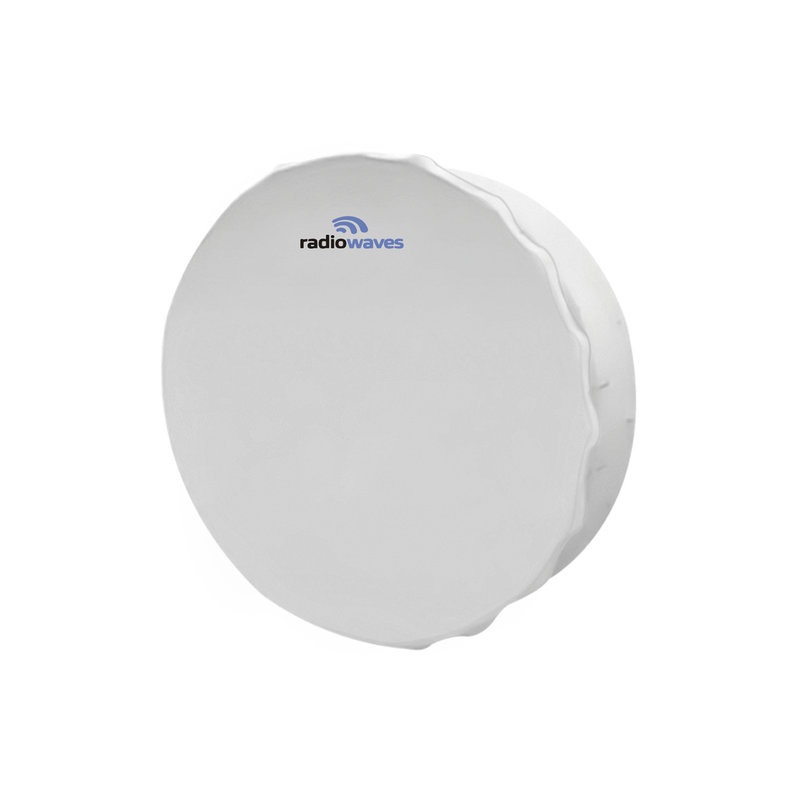

1.8 m | 6 ft High Performance Parabolic Reflector Antenna, Dual-polarized, 10.7-11.7 GHz
- Brand / Vendor: RADIOWAVES
- Hardware Model / MPN: HPD6-11FX
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Hardware
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: RADIOWAVES | Model / MPN: HPD6-11FX
Availability: Standard Supplier Lead Time
Carrier-Class Parabolic Antennas
HPDx-11Fx High Performance 10.7 – 11.7 GHz Series
Radiowaves Inc
The HP High-Performance Series by RadioWaves offers a full line of high-performance parabolic antennas engineered to provide ETSI class 2/3 radiation pattern performance as well as excellent gain. RadioWaves field-proven pre-assembled antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance. The included radome ensures robust and reliable performance under the most challenging conditions. If it's rugged, it must be RadioWaves!
FEATURES AND BENEFITS
High-Performance ETSI Class 2/3* Parabolic Antennas – Excellent performance for a wide range of applications
Fully Preassembled at the Factory – Simplifies installation on-site and guarantees “factory-tested” quality
Warranty – Industry-leading 7-year warranty
*ETSI Class depends on frequency band
General Specifications
- Antenna Type: High-Performance Parabolic Reflector Antenna
- Size, nominal: 6 ft | 1.8 m
- Polarization: Dual
- Standard RF Connector Type: CPR90G
- Standard RF Connector Suffix: RS (append suffix to model number)
Electrical Specifications
- Operating Frequency Band: 10.7 - 11.7 GHz
- Half Power Beamwidth, Horizontal/Vertical: 1.1 degrees
- Cross-Polarization Discrimination: 30 dB
- Front to Back Ratio (F/B): 68 dB
- Gain, Low Frequency: 42.9 dBi
- Gain, Mid Frequency: 43.2 dBi
- Gain, High Frequency: 43.6 dBi
- VSWR: 1.37:1
- Return Loss: -16.1 dB
Mechanical Specifications
- Fine Azimuth Adjustment: +/- 10 degrees
- Fine Elevation Adjustment: +/- 10 degrees
- Mounting Pipe Diameter, Min: 4.5 inch | 11.4 cm
- Mounting Pipe Diameter, Max: 4.5 inch | 11.4 cm
- Net Weight: 251 lbs | 113 kg
- Wind Velocity Operational: 90 mph | 145 km/h
- Operating Temperature Range: -40 to +60 C
Shipping Information
- Package Type: Wood Crate
- Gross Weight: 401 lbs | 181.8 kg
- Dimensions, (L x W x H): 77 x 35 x 80in | 195 x 89 x 203 cm
