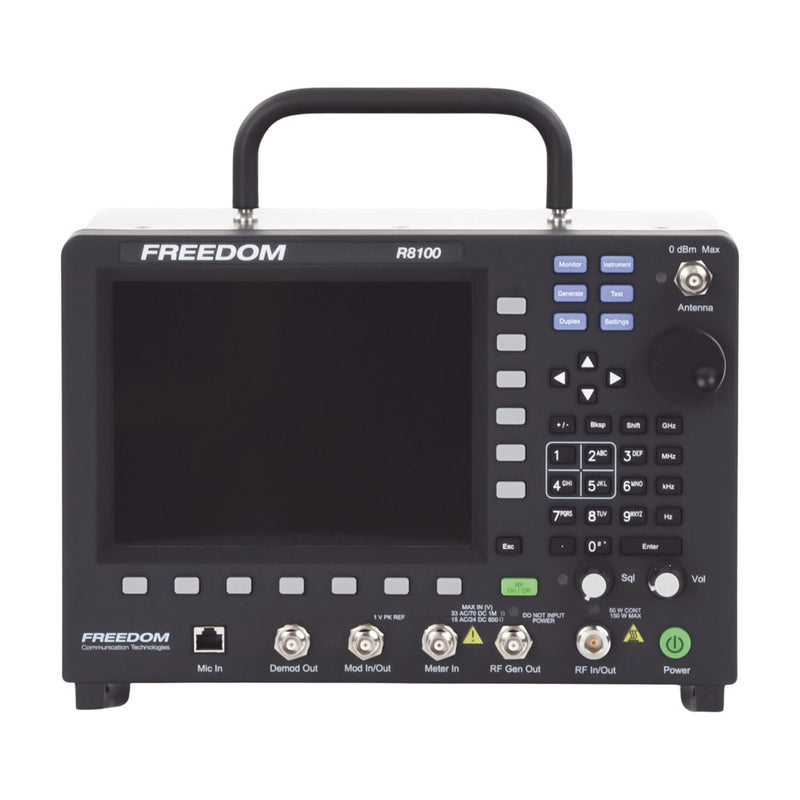

Premium Ultra-Portable Choice Communications System Analyzer, 250 kHz to 1 GHz. (Includes License NXDN, DMR and Remote)
- Brand / Vendor: FREEDOM COMMUNICATION TECHNOLOGIES
- Hardware Model / MPN: R8100
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Digital Service Monitor
Tool Every Laboratory Must Have
100% Portable Equipment
Auto Tune for Different Protocols
Plug and Play Interchangeable Battery
MIL-STD Standard
License Growth
The R8100 is the ultra-portable equipment in laboratory devices. It has all the functionalities and testing capabilities of an industry-standard communications system analyzer but also features an internal battery, first-class ergonomics, and a set of advanced optional features.
With the R8100, there is absolutely no trade-off between power and full portability. Its Mil-Spec Class 3 vibration and shock rating proves its suitability for nearly any LMR test environment.
Functions and Measurement Capabilities:
- Spectrum Analyzer.
- Signal Generator.
- High Sensitivity Signal Strength Meter.
- SINAD and Distortion Meter.
- Modulation Analyzer.
- Oscilloscope.
- Frequency Error Meter.
- AM Modulation and FM Deviation Meter.
- Audio Frequency Generator and Controller.
Included Accessories:
- Telescopic Antenna and Right-Angle BNC Adapter.
- Microphone.
- Oscilloscope Probe.
- Power Cable and AC Adapter.
- Cable Fault Localization Kit (3dB Splitter, 50 Ohm Terminal Load in chain with screw and nut, and two 12-inch BNC cables).
- Internal Lithium-Ion Battery.
- TNC to BNC Adapter.
- 12V to 16V Converter.
Fully compatible with existing protocols on the market, including NXDN, Analog, DMR, and P25, among others.
- Frequency Range: 250 kHz - 1000 MHz (1 GHz).
- Fully Duplex Operation.
- 8.4' Color LCD Screen (213.36 mm), 800 x 600 (VGA) resolution, visible under any lighting conditions.
- Spectrum Analyzer with a Noise Floor of -120 dBm.
- Power Meter: 50 Watts Continuous, 150 Watts Max.
Includes: Tracking Generator Option, Cable Fault Detection, and Enhanced Spectrum Analyzer / Dual Display.
TOTAL PORTABILITY
Each R8100 is shipped with a lithium-ion battery weighing only 490g. The battery powers the unit for up to 90 minutes and can be field-replaced in less than 30 seconds. Simply open the cover, remove the battery, and insert another on the side of the unit. During AC power, the R8100 charges the internal battery, and when AC power is disconnected, the unit seamlessly switches from AC to DC without interruption. The R8100 display shows available battery capacity at all times. Spare batteries and an independent charger can also be purchased for applications requiring extended portability.
HIGH-PERFORMANCE TRACKING GENERATOR
Our tracking generator option provides an integrated instrument that sets the RF generator into sweep mode. The extraordinary dynamic range and response time offer an invaluable tool for measuring and servicing RF filters and matching networks like IF filters and Duplexers. The wide selection of display and marker functions ensures fast and accurate measurements. Antenna return loss and VSWR measurements can be made using the optional return loss bridge (R8-VSWR).
ADVANCED FEATURES
The 'Dual-Display' function, showing the carrier and modulation scope on the same screen, is included as a standard feature with every R8100, as is a tracking generator and cable fault locator. A unique feature of
