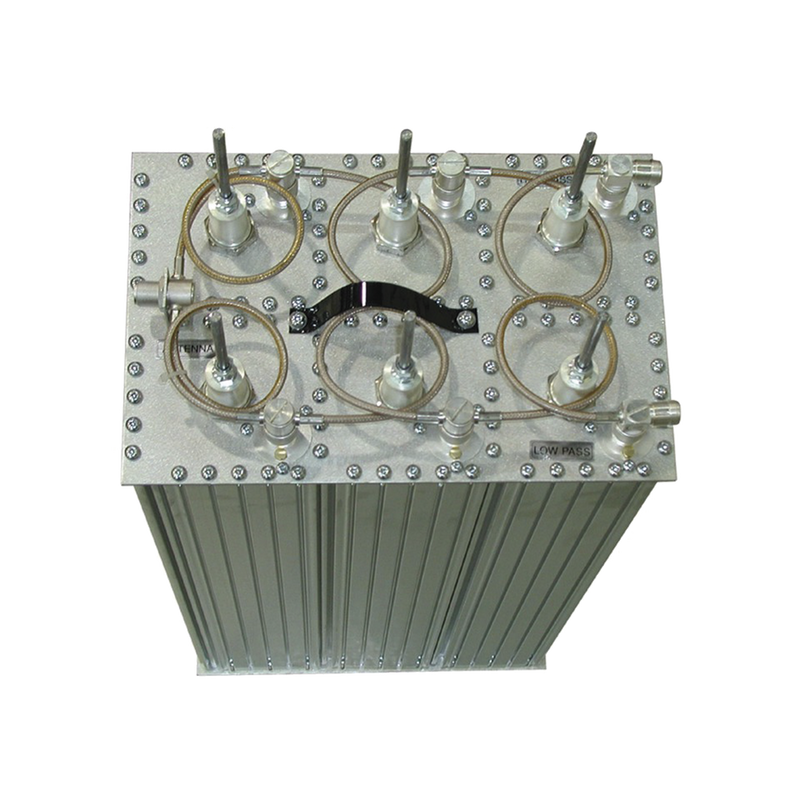

SINCLAIR Duplexer, Q-Circuit, Res-Lok, 6 Cavities, 138-174 MHz, 85 dB, Rack Mount, 350 Watt, N Female.
- Brand / Vendor: SINCLAIR
- Hardware Model / MPN: Q2330-E
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Duplexer, Q-Circuit, Res-Lok, 6 cavities, rack mount, 138-174 MHz, N Female.
- Res-Lok design reduces inter-cavity cabling and losses.
- Six-cavity provides 85 dB isolation at a frequency separation of 500 kHz.
Electrical Specifications:
| Frequency Range | MHz | 138 to 174 |
| Number of Cavities - Tx Side | 3 | |
| Number of Cavities - Rx Side | 3 | |
| Connectors | N-Female | |
| Input VSWR (max) | 1.5:1 | |
| Insertion Loss Low Pass to Ant (max) | dB | 1.5 |
| Insertion Loss High Pass to Ant (max) | dB | 1.5 |
| Insertion loss (typ) Tx to Ant | dB | 1.4 |
| Insertion loss (typ) Rx to Ant | dB | 1.4 |
| Impedance | Ω | 50 |
| Isolation - Tx noise suppression at Rx (min) | dB | 85 |
| Isolation - Rx carrier suppression at Tx (min) | dB | 85 |
| Average Input Power (max) | W | 350 |
| Frequency separation (min) | MHz | 0.5 |
Mechanical Specifications
| Width | in | 19 |
| Depth | in | 30.3 |
| Length/ Height | in | 8.37 |
| Finish | chromate conversion | |
| Weight | lbs | 45 |
| Mounting configurations | 19-inch rack | |
| Actual shipping weight | lbs | 50 |
| Shipping dimensions | in | 12x16x37 |
Environmental Specifications
| Temperature range | °F | -40 to +140 |
