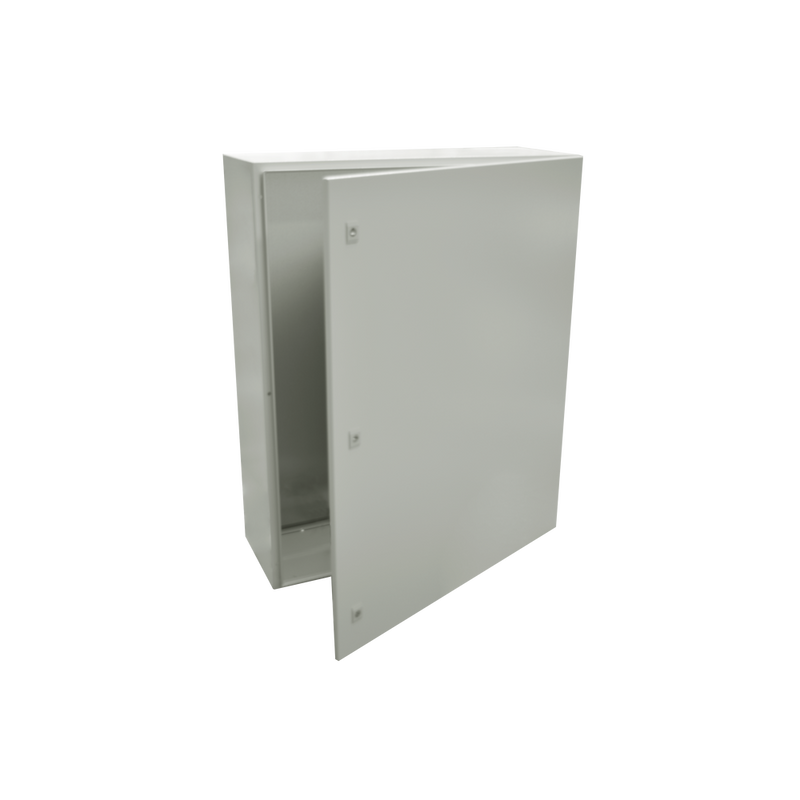

Single door wall mount enclosure (800 x 1200 x 400 mm). And Metal Backplate for mounting equipment.
- Brand / Vendor: PRECISION
- Hardware Model / MPN: PST-80120-40A
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Steel cabinet for use in outdoor applications such as poles, telecommunication towers, or wall where there is no protection against rain or excessive dust.
Physical Characteristics:
Material: Steel.
Paint: Powder-based polyester.
Protection level: IP66
Impact resistance: IK10
Backplate inner material: Galvanized steel thickness 2mm
Dimensions: 800 x 1200 x 400 mm (with x height x depth).
Includes:
Steel body and door.
Backplate for mounting equipment. 750 x 1165 mm (with x height)
Security lock with key.
Bottom cover for the installation of gland type connectors.
Packaging.
Application:
Installation of POE's in tower, pole or wall.
Battery storage (add ventilation recommended).
Cabinet for surge protectors, fuses, or electrical boards.
It is recommended to use gland type connectors for wiring output (See models).
Technical note: Fan implementation is possible, however, holes must be made manually in the cabinet. It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is recommended the implementation of 2 model PST-BC-V60 (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, the recommended model is FAN-602512 (Not included).
Installing these items will reduce the protection level (IP) of the cabinet but will improve heat dissipation.
