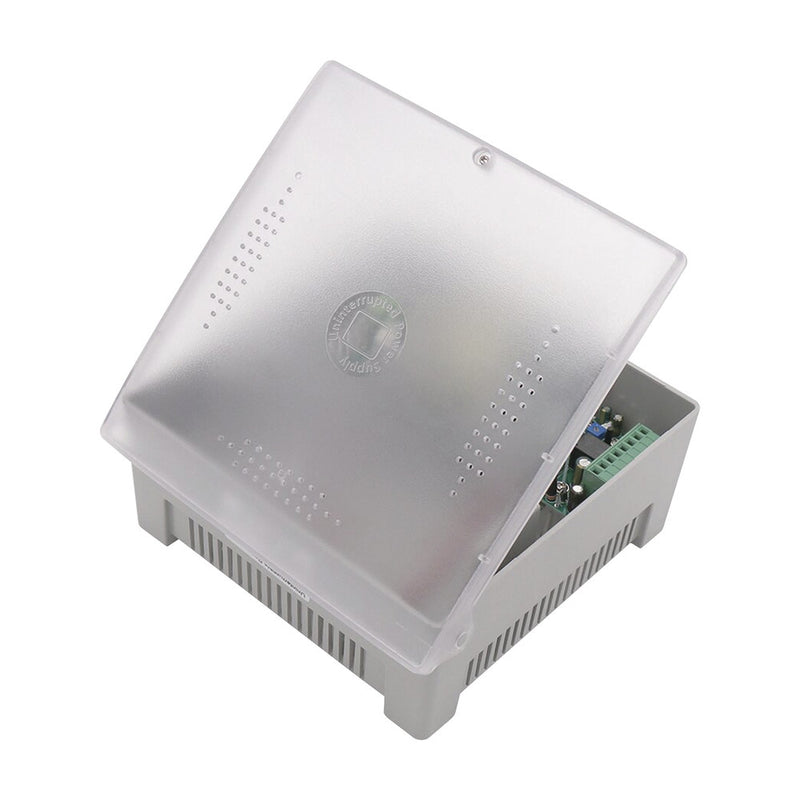

Power Supply of 11-15 Vdc @ 5 Amper / 4 Outputs / Plastic Cabinet / With Backup Battery Capacity / Requires Battery
- Brand / Vendor: EPCOM POWERLINE
- Hardware Model / MPN: PS12DC4PBK
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Introduction:
Conversion efficiency of this model is more than 85%, with output over-current protection, short circuit protection, with constant output voltage and etc.
Working Principle:
Under AC 100-240V, power for the load and battery are provided by electric supply. Then led light is green. When power failure is provided by the battery voltage to the load, then led light being red, entered the stage of storage battery voltage monitoring at the same time. When detect the battery voltage drops to 10.5 V, the circuit will cut off the load, no longer to load the power supply in order to prevent the battery discharged, thus protecting the lifespan of the battery, the system will automatically reset when mains power returned to normal and ready to be prepared for the next time.
Features:
- With Battery Optional Capacity
- 4 outputs
- With Backup Battery Capacity
- Battery is not included
- The battery can be : PL4.512 / PL712 / PL912
- Input voltage: 96-264 Vac 47-63 Hz
- Input current: 1.5 A Max.
- Output voltage: 11-15 Vdc
- Output Current: 5A Max.
- Operating temperature: -20~45°C
- Size: 187 mm*193 mm*90 mm (L*W*H)
- - 1 year warranty
Note: This power supply does not include the power cord, recommend the model ACCORDP1.8M
