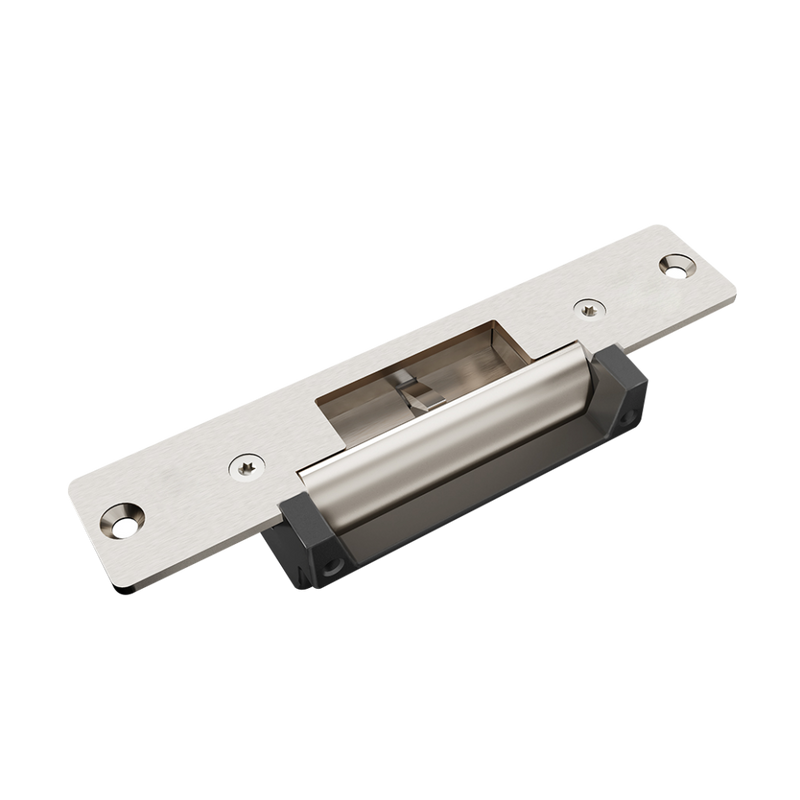

Universal Electric Mortise Strike, Fail Secure/Safe with Door Sensor / Use for indoor / UL
- Brand / Vendor: ACCESSPRO
- Hardware Model / MPN: PRO138CS-UL
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
The PRO138CS-UL is UL listed, with a certified static strength rating of 1000 lbf (4448 N), a dynamic strength rating of 50 ft-lbf (68 J), and an endurance rating of 250,000 cycles — making it a fit for projects that specifically call out UL-listed door hardware.
Loosen the internal screw and move it to the other hole to switch operating modes — no separate part number needed for each mode.
| Fail Secure (NO) | Door stays locked on power loss |
| Fail Safe (NC) | Door unlocks on power loss |
| How to switch | Move internal screw to the other hole |
A dry contact signal output reports door status back to the panel, so you know the door position without adding a separate contact sensor.
| Signal output | NO / NC / COM dry contact |
| Power wires | Red (+) / Black (−), DC12V default |
| Signal wires | Yellow (NC) / White (COM) / Green (NO) |
- Adjustable Fail Secure (NO) or Fail Safe (NC)
- Built-in door status signal output
- UL listed electric mortise strike
- Suitable for wood, metal and glass doors
- Optional 25mm / 50mm extension plates for thick frames
- Voltage: DC12V (default)
- Current draw: 280mA @ 12V
- Terminals: red (+), black (−), yellow (NC), white (COM), green (NO)
- Dry contact door status output
- Face plate: 6.50' x 1.69' x 1.38' (165 x 43 x 35 mm)
- Weight: 0.93 lb (0.42 kg)
- Operating temperature: -4°F ~ 131°F (-20°C ~ 55°C)
- Static strength: 1000 lbf (4448 N)
- Dynamic strength: 50 ft-lbf (68 J)
- Endurance: 250,000 cycles
Where to use it
A universal mortise strike that mounts inside the frame next to the existing lever or lock, suitable for wood, metal and glass doors indoors.
Product views
Wiring and Fail Safe / Fail Secure conversion
Full specifications
| Performance | |
| Holding force | 1000 lb static (per datasheet)* |
| Static strength rating | 1000 lbf (4448 N) |
| Dynamic strength rating | 50 ft-lbf (68 J) |
| Endurance rating | 250,000 cycles |
| Feature | Fail Secure (NO) / Fail Safe (NC), field adjustable |
| Suitable for | Wooden door, metal door, glass door |
| Application | Indoor use |
| Electrical | |
| Voltage | DC12V (default) |
| Current | 280mA @ 12V |
| Signal output | Door status output, NO / NC / COM dry contact |
| Wire colors | Red (+), Black (−), Yellow (NC), White (COM), Green (NO) |
| Physical | |
| Face plate dimensions | 6.50' x 1.69' x 1.38' (165L x 43W x 35H mm) |
| Weight | 0.93 lb (0.42 kg) |
| Operating temperature | -4°F ~ 131°F (-20°C ~ 55°C) |
| Accessories | 25mm / 50mm extension plates (sold separately) |
| Certification | UL Listed |
| Warranty | 1 year with Epcom |
*The manufacturer's datasheet lists a 1000 lb static holding force with UL-tested ratings; the Epcom product page bullet points list '1200 lb Holding Force Rating.' This page follows the datasheet's tested figure. The product page also lists 24V AC and 120V AC compatibility, which likely refers to an included AC/DC transformer; the datasheet itself specifies the strike operates on DC12V.
