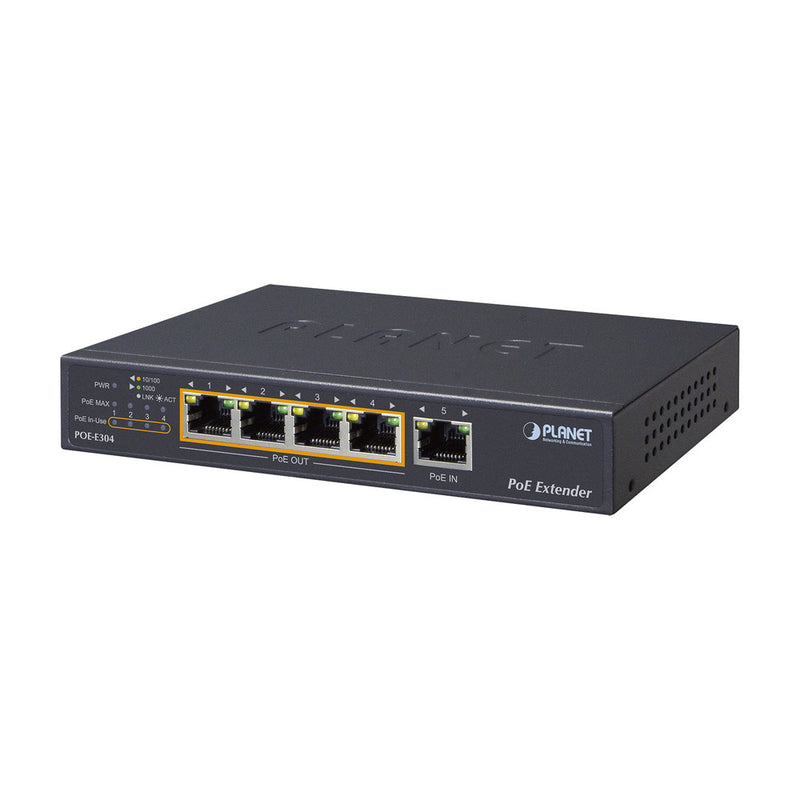

65 Watt Ultra PoE Extender With 4 Gigabit Output Ports 802.3 af / at
Key Technical Specifications & Features
- Brand / Vendor: PLANET
- Hardware Model / MPN: POE-E304
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
$90.24
$112.80
Save: $22.56 (20% OFF)
1+ in stock • Ships from USA Warehouses
Volume Contractor Pricing:
1 - 4 units
$90.24
Standard
5 - 9 units
$85.73
Save 5%
10+ units
$81.22
Save 10%
Guaranteed Safe & Secure Checkout
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$90.24
Standard Catalog
5 – 9 Units
$84.83
Save ~6%
10+ Units
$79.41
Save ~12%
Need an official corporate quote or net terms?
Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks
Shipped by: Nuo Networks
| Physical Specifications | |
|---|---|
| Network Ports |
PoE In Port 1 x 10/100/1000BASE-T Ethernet with Ultra PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector PoE Out Port 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector |
| Negotiation | 10/100/1000Mbps |
| Switch | Store-and-Forward |
| MAC Address table | 2K |
| Data Buffer | 2Mbits |
| Switch Fabric | 10Gbps |
| Switch Throughput | 7.44Mpps @ 64 bytes |
| Jumbo Frame | 9K |
| Flow Control | IEEE 802.3x pause frame for full-duplex Backpressure for half-duplex |
| LED Indicators |
PoE In Port 10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green) PoE Out Port 1 to Port 4 10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green) PoE-in-Use (Orange) PoE Max. (Orange) |
| Protection | ESD (Ethernet): 6KV Surge (EFT for power): 2KV |
| Enclosure | Metal |
| Installation | Desktop/Wall mountable |
| Dimensions (W x D x H) | 160 x 92.5 x 28 mm |
| Weight | 370g |
| Energy Requirements | PoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC External DC: 50~56V DC |
| Energy consumption | 4 watts/13.7BTU (System on with PoE input) 6 watts/20.6BTU (Ethernet full loading without PoE function) 60 watts/205.9BTU (Full loading with PoE function) |
| Cabling | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft) |
| Power over Ethernet | |
| PoE |
PoE In Port Ultra Power over Ethernet end-span/mid-span PD class 4 PD Per PoE Out Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE |
| PoE power |
PoE In Port 50~56V DC, max. 60 watts Per PoE Out Port 44~55V DC, max. 30.8 watts |
| Pin configuration |
PoE In Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2(-), 3/6(+); 4/5(+), 7/8(-) Per PoE Out Port 1/2 (+), 3/6 (-), end-span (Type A) |
| PoE Power Budget | 50 watts (max.) @ Ultra PoE input 20 watts (max.) @ IEEE 802.3at PoE+ input |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control |
| Environment | |
| Operation | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
