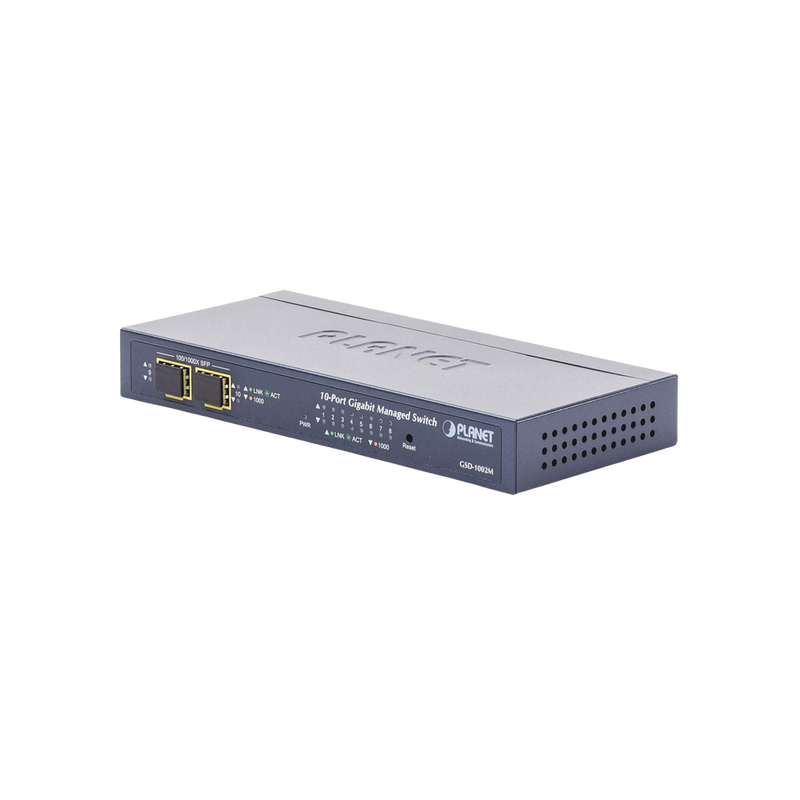

8-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Managed Desktop Switch
Key Technical Specifications & Features
- Brand / Vendor: PLANET
- Hardware Model / MPN: GSD-1002M
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Hardware
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
$111.99
$140.35
Save: $28.36 (20% OFF)
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units
$111.99
Standard
5 - 9 units
$106.39
Save 5%
10+ units
$100.79
Save 10%
Guaranteed Safe & Secure Checkout
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$111.99
Standard Catalog
5 – 9 Units
$105.27
Save ~6%
10+ Units
$98.55
Save ~12%
Need an official corporate quote or net terms?
Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks
Shipped by: Nuo Networks
Brand: PLANET | Model / MPN: GSD-1002M
Availability: Standard Supplier Lead Time
- 8 10/100/1000Mbps Gigabit Ethernet ports with auto-MDI/MDI-X supported
- 1 port (Port 8) supports 802.3af/at PoE 48~56V DC in-line power
- 2 100/1000Base-X mini-GBIC/SFP slots
Installation
- - 802.3af/at PoE In
- - 12V DC power adapter acceptable
- Dual Power Design
Layer 2 Features
- - IEEE 802.1Q tagged VLAN
- - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- - Protocol VLAN
- - Voice VLAN
- - Private VLAN
- - Management VLAN
- - GVRP
- - STP (Spanning Tree Protocol)
- - RSTP (Rapid Spanning Tree Protocol)
- - MSTP (Multiple Spanning Tree Protocol)
- - STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- - Cisco ether-channel (Static Trunk)
- - Maximum 8 trunk groups, up to 8 ports per trunk group
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High-performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Supports VLAN
- Supports Spanning Tree Protocol
- Supports Link Aggregation
- Provides Port Mirror (many-to-1)
- Loop protection to avoid broadcast loops
Quality of Service
- - Broadcast / Unknown-Unicast / Unknown-Multicast
- - IEEE 802.1p CoS
- - TOS / DSCP / IP Precedence of IPv4/IPv6 packets
- Ingress / Egress Rate Limit per port bandwidth control
- Storm Control support
- Traffic classification
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IGMP Snooping v2 and v3
- Supports MLD Snooping v1 and v2
- IGMP Querier mode support
- IGMP Snooping port filtering
- MLD Snooping port filtering
Security
- - IEEE 802.1X Port-based network access authentication
- - Built-in RADIUS client to co-operate with the RADIUS servers
- - RADIUS / TACACS+ login user access authentication
- Authentication
- Access Control List
- IPv4 / IPv6 IP-based ACLMAC-based ACL
- MAC Security
- - Static MAC- MAC Filtering
- Port Security for Source MAC address entries filtering
- DHCP Snooping to filter distrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- IP Source Guard prevents IP spoofing attacks
- DoS Attack Prevention
- SSH / SSL
Management
- - Web switch management
- - Telnet Command Line Interface
- - SNMP v1, v2c and v3
- - SSH / SSL secure access
- IPv4 and IPv6 dual-stack management
- Switch Management Interface
- User Privilege Levels Control
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP address assignment
- System Maintenance
- - Firmware upload/download via HTTP / TFTP- Configuration upload/download through Web interface- Hardware reset button for system reboot or reset to factory default
- SNTP Network Time Protocol
- Cable Diagnostics
- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
- SNMP trap for interface Link Up and Link Down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms, and events)
- PLANET Smart Discovery Utility
