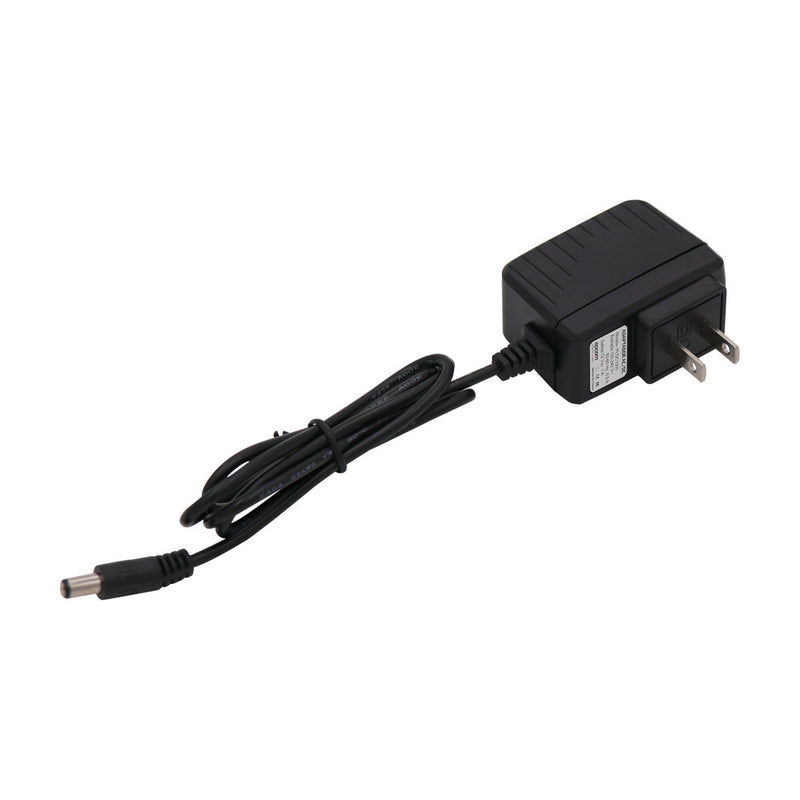

Adapter Supply 12 Vdc Regulated @ 1A ; Input voltage 100-240 Vac
- Brand / Vendor: EPCOM POWERLINE
- Hardware Model / MPN: PL-DC-1000
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
A regulated supply holds its output steady as the load changes — important when a camera's IR array switches on and current demand jumps.
| Output tolerance | 12 VDC ±5% |
| Output ripple | 120 mV |
| Efficiency | Greater than 78% |
A wiring mistake shouldn't cost you a camera. Built-in protection shuts down before damage, and the LED tells you instantly whether power is actually reaching the device.
| Over-current | Protected |
| Short circuit | Protected |
| Indicator | Green LED, on when output is live |
Pick the right amperage
Undersizing a supply produces the same symptoms as a bad camera: night-time reboots, flicker, weak IR. Add up your device's draw at full load — with IR on — and leave headroom.
| Model | Output | Typical use |
| PL-DC500 | 12 VDC @ 500 mA | Low-draw devices, small sensors |
| PL-DC-1000 | 12 VDC @ 1.0A | Single camera or single device — the most common choice |
| PSD1202D | 12 VDC @ 2A | Higher-draw cameras, PTZ, extra headroom |
| P12DC3A | 12 VDC @ 3A | Recorders or a device with a heavy peak load |
| PS-12-DC-4C | 12 VDC @ 5A, 4 outputs | Multi-camera sites · adjustable 11–15 VDC for long runs |
- Output: 12 VDC @ 1.0A, 12W
- Regulated output, ±5% tolerance
- Output ripple: 120 mV
- Conversion efficiency above 78%
- Over-current protection
- Short-circuit protection
- Constant output voltage regulation
- Green LED power indicator
- Input: 100 – 240 VAC, 50/60 Hz
- Input current: 0.5A
- Load loss: 0.1W
- AC input: 2-pin U.S. wall plug
- DC output plug: 5.5 x 2.1 mm
- Also available: 5.5 x 2.5 mm
- Dimensions: 2.27' x 1.69' x 1.07'
- Direct wall-plug form factor
- Operating temp: -4°F ~ 113°F
- Operating humidity: 20 – 90% RH
- Storage temp: -13°F ~ 149°F
- Storage humidity: 10 – 95% RH
- Indoor, dry-location use only
Product views
Full specifications
| Input | |
| Input voltage | 100 – 240 VAC, 50/60 Hz |
| Input current | 0.5A |
| AC connection | 2-pin U.S. wall plug (integrated) |
| Load loss | 0.1W |
| Output | |
| Output voltage | 12 VDC regulated, ±5% |
| Output current | 1.0A |
| Output power | 12W |
| Output ripple | 120 mV |
| DC output plug | 5.5 x 2.1 x 11 mm (5.5 x 2.5 x 11 mm also available) |
| Conversion efficiency | Greater than 78% |
| Protection | |
| Over-current | Yes |
| Short circuit | Yes |
| Voltage regulation | Constant output voltage |
| Indicator | Green LED — lit when output is present |
| Physical & Environment | |
| Dimensions | 2.27' x 1.69' x 1.07' (L x W x H) |
| Operating temperature | -4°F ~ 113°F |
| Operating humidity | 20 – 90% RH |
| Storage temperature | -13°F ~ 149°F |
| Storage humidity | 10 – 95% RH |
| Warranty | 1 year with Epcom |
- Verify input and output wiring is correct before applying power — a reversed connection can damage the connected device.
- Confirm the LED lights after plugging in. If there's no LED and no output, re-check the wiring before assuming the device is faulty.
- Indoor, dry locations only. Do not install where the adapter can be exposed to rain, splashes, or condensation.
- Avoid direct sunlight, high-temperature spots, and dusty environments.
- Keep the outlet accessible — the plug is the disconnect for this device.
*All pictures and specifications are for reference only and are subject to change without prior notice.
