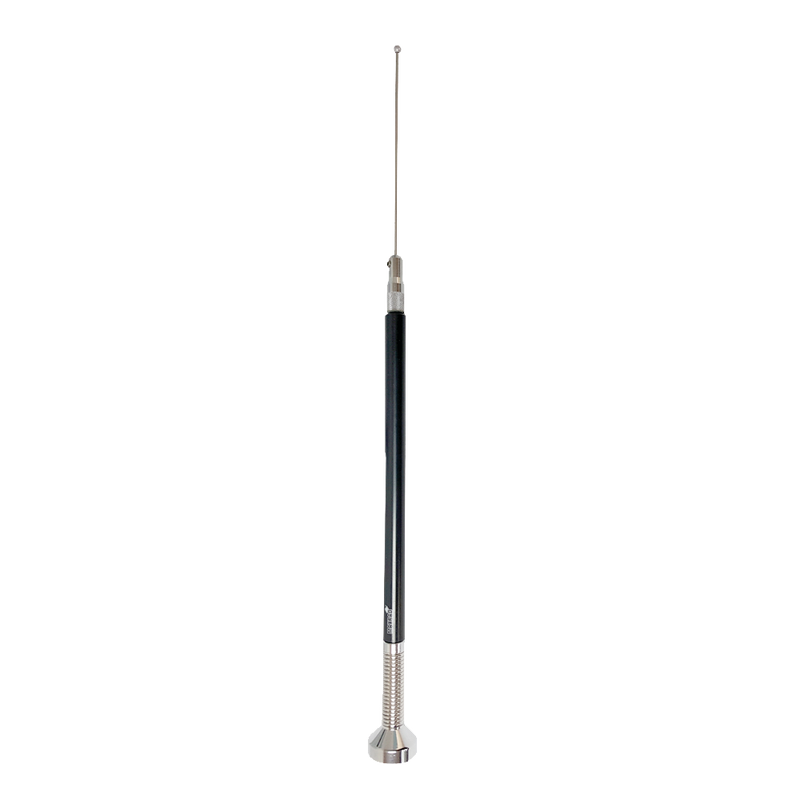

No Ground Plane Elevated Feed Point Antenna, Frequency 480-512 MHz, Unity Gain
Key Technical Specifications & Features
- Brand / Vendor: PCTEL
- Hardware Model / MPN: MUF4800
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
$17.65
$22.06
Save: $4.41 (20% OFF)
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units
$17.65
Standard
5 - 9 units
$16.77
Save 5%
10+ units
$15.89
Save 10%
Guaranteed Safe & Secure Checkout
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$17.65
Standard Catalog
5 – 9 Units
$16.59
Save ~6%
10+ Units
$15.53
Save ~12%
Need an official corporate quote or net terms?
Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks
Shipped by: Nuo Networks
Brand: PCTEL | Model / MPN: MUF4800
Availability: Standard Supplier Lead Time
The elevated feed point antennas are designed for those applications that lack a ground plane. They are ideal for mirror or trunk lid mounting applications or for vehicles with non-metallic surfaces where no ground plane is available.
Features
• Maximum Power:
125 watts (all models, except 4000 series)
200 watts (UHF series models)
• Polarization: Vertical
• Nominal Impedance: 50 ohms
• VSWR: < 1.5:1
• Radiator Material: .100” diameter stainless steel; bright or black finish
• Spring: Stainless steel; bright or black finish
• Phasing Coil Housing:
UHF models: Molded polymer jacket with bright or black chrome plated brass bushing
700, 800 & 900 MHz models: Molded polymer jacket with copper, nickel and chrome plated brass bushing
• Rod Ferrule: 5/16”-24 thread; bright or black chrome plated brass
• Body: Molded polymer
Specifications
Features
- Elevated feed point eliminates vehicle “shadow” effect.
- Does not require a ground plane; excellent for non-metallic vehicles.
- Stainless steel shock spring included on all models Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts.
- Optional “push pin” mount contact interface on select models.
• Maximum Power:
125 watts (all models, except 4000 series)
200 watts (UHF series models)
• Polarization: Vertical
• Nominal Impedance: 50 ohms
• VSWR: < 1.5:1
• Radiator Material: .100” diameter stainless steel; bright or black finish
• Spring: Stainless steel; bright or black finish
• Phasing Coil Housing:
UHF models: Molded polymer jacket with bright or black chrome plated brass bushing
700, 800 & 900 MHz models: Molded polymer jacket with copper, nickel and chrome plated brass bushing
• Rod Ferrule: 5/16”-24 thread; bright or black chrome plated brass
• Body: Molded polymer
Specifications
- Model: MUF4800
- Frequency Range: 480-512 MHz
- Factory Tuned Frequency: UHF Antennas are field tunable within the specified frequency range
- Gain: Unity
- Rod/Coil Type: Straight
- Antenna Height at lowest frequency: Approximately 18”
